High Performance Square Kelly Hexagonal For Drilling And Weight Bearing

________________________________________

Product overview:

The square drill rod produced and sold by our company Huichi Petro is the core power transmission equipment in oil drilling operations. It is located at the top of the entire drill string and connects the top drive (top drive) with the drill string. It transmits the rotational torque and axial pressure generated by the ground power equipment (such as turntable, top drive) to the downhole drill bit, drives the drill bit to rotate and break the rock, and realizes the smooth progress of the drilling operation. Its unique square cross-section design can be adapted to the drilling turntable or top drive slip, ensuring efficient and stable power transmission, and is widely used in land, sea and complex formation drilling operations.

________________________________________

Working Principle:

During drilling operations, the ground power equipment drives the square drill rod to rotate, and the square drill rod is connected to the drill rod column through the connecting thread at its lower end, thereby transmitting the rotational motion to the entire drill rod column and the drill bit. At the same time, during the drilling process, as the depth of the well increases, it is necessary to continuously apply axial pressure to the well. While transmitting the rotational torque, the square drill rod also undertakes the task of transmitting the axial pressure applied by the ground to the drill bit, so that the drill bit can effectively break the rock and realize the continuous deepening of the wellbore.

________________________________________

Core structure and features:

• High-strength drive structure

The main body of the square drill rod produced and sold by our company Huichi Petro is forged with high-quality alloy steel (AISI 4145H). After heat treatment and surface hardening process, it has extremely high tensile, torsional and compressive strength, and can withstand huge rotational torque and axial pressure.

Square section design: standard 4-sided or 6-sided hollow steel pipe, precisely matched with the turntable square core to avoid slipping, power transmission efficiency> 98%.

• Precision rotary sealing system

Built-in high-pressure sealing assembly, supports circulating drilling fluid (mud) injected into the bottom of the well through the inner hole, and the sealing pressure level is above 5000psi, which is suitable for deep well and ultra-deep well operation needs.

• Modular connection design

The upper and lower ends are equipped with API standard threads (such as NC50, 6-5/8" Reg, etc.). The upper end is a male thread for connecting a faucet; the lower end is a female thread for connecting a drill string. It can quickly connect the top drive and the drill string to reduce installation time.

Optional protective joints can be used to extend the life of the threads and reduce maintenance costs.

Obvious marks will also be engraved on the outer wall of the square drill rod so that the number of rotations and the lowering depth of the square drill rod can be accurately identified and controlled during drilling operations.

________________________________________

Key performance advantages:

1. Efficient power transmission: Optimized cross-sectional dimensions and material ratios, torque bearing capacity of 40,000-80,000 lbf·ft, meeting the needs of deep well hard formation drilling.
2. Super wear and corrosion resistance: The inner wall is chrome-plated or sprayed with tungsten carbide coating to resist drilling fluid abrasion and H₂S/CO₂ corrosive environment, and the service life is increased by 30%.
3. Safe and reliable: Passed API 7-1/ISO 10424 certification, full-process non-destructive testing (UT/MT) to ensure defect-free delivery.

________________________________________

Choose our square drill rod, you will get:

• Fast delivery: sufficient inventory of conventional models, providing square drill rods of various specifications and sizes to meet different drilling needs. Support 72-hour delivery of urgent orders.

• Customized solutions: professional technical support, providing material upgrades, special specifications, materials and surface-treated square drill rods according to well depth and formation conditions.

• Global warranty: high-quality products, perfect after-sales service, 12-month quality assurance, and professional technical team 24-hour response.

________________________________________

Technical parameters:

The specifications and models of square drill rods are mainly divided according to their cross-sectional size and length. Different specifications and models of square drill rods are suitable for different drilling operation requirements. Users can choose suitable square drill rods according to actual drilling process and equipment requirements. Common cross-sectional sizes are 4 1/2 inches, 5 inches, 6 5/8 inches, etc., and the length is generally between 9 meters and 13 meters.

________________________________________

Applicable scenarios:

The square drill rods produced and sold by our company Huichi petro are widely used in drilling operations in various onshore and offshore oil fields. Whether it is conventional drilling, directional drilling or horizontal drilling, the role of square drill rods is indispensable in drilling operations that require efficient transmission of torque and transportation of drilling fluid.

• Land conventional drilling platform;
• Offshore deepwater drilling ship;
• High temperature and high pressure (HPHT) ultra-deep well;
• Horizontal well/extended reach well directional operation;
• Oil and gas drilling;
• Geological exploration drilling;
• Water well drilling;
• Geothermal drilling.

________________________________________

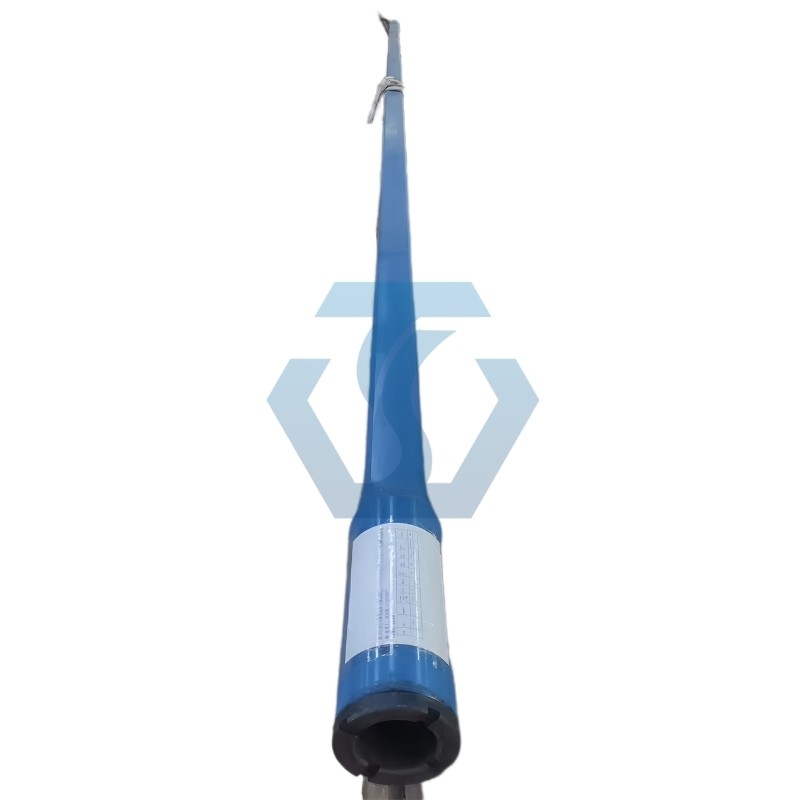

Product display:

________________________________________

Product package:

Product packaging: iron box or iron frame, wooden pallet, wooden box, bulk or customized according to customer requirements.

________________________________________

Product detection:

100% inspection will be carried out before shipment, and video image data and inspection reports will be provided.

________________________________________

Accepted delivery terms:

FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
