Oil Drill Pipe Seamless Steel Pipe With Threads For Deep Wells Large Displacement Wells

________________________________________

Product overview

The weighted (thick-walled) drill pipe produced and sold by our company Huichi Petro is made of thick-walled seamless steel pipe. It is a special transition drill pipe specially designed for oilfield drilling operations. It is an intermediate drilling tool between drill collars and ordinary drill pipes. It provides extra weight through thickened pipe body and special structural design, optimizes drilling pressure transmission and reduces the use of drill collars. It can effectively relieve the stress concentration in the transition section between drill collars and drill pipes, provide drilling pressure, and reduce the connection area and outer diameter wear rate between the drill string and the well wall.

________________________________________

Working principle

In drilling operations, the weighted drill pipe is installed at the bottom of the drill pipe column, between the ordinary drill pipe and the drill collar. When the drill bit breaks the rock, sufficient pressure is required to ensure the drilling effect. The weighted drill pipe, with its own heavier weight, can provide additional axial pressure to the drill bit, enabling the drill bit to break the rock more effectively. At the same time, the rigidity of the weighted drill pipe is relatively large, which can reduce the bending and vibration of the drill pipe column to a certain extent, improve the stability of the drill tool assembly, reduce the risk of fatigue damage to the drill pipe, and ensure the smooth progress of the drilling operation. In addition, the weighted drill pipe has a channel inside like the ordinary drill pipe for conveying drilling fluid, cooling the drill bit, carrying cuttings and other functions.

________________________________________

Core structure and features

• Thickened pipe body design

The middle pipe body is thickened (the outer diameter and wall thickness are increased), and the unit length weight is 3-5 times higher than that of ordinary drill pipe, providing stable drilling pressure and reducing the demand for drill collars.

Forged with AISI 4145H alloy steel, after quenching and tempering heat treatment and cold straightening process, the tensile strength is ≥135,000 psi, and the torsion resistance is improved by 20%.

• Transition section optimization

The gradual transition zone design at both ends effectively alleviates the stress concentration between the drill collar and the drill pipe, avoids fatigue fracture, and prolongs the service life.

The surface of the pipe body is high-frequency quenched, with a hardness of HRC 55-60, to resist the friction of the well wall and the erosion of the drilling fluid.

• Wear-resistant and anti-corrosion reinforcement

The joint area is sprayed with a tungsten carbide wear-resistant band (Hard Banding) to reduce the wear of the well wall and extend the maintenance cycle.

The inner wall is galvanized or epoxy coated to prevent drilling fluid corrosion and scaling, and is suitable for acidic environments containing H₂S/CO₂.

• Diverse specifications

The diameter and length of the weighted drill pipe can be customized according to different drilling requirements. The common diameter ranges from 3-1/2 inches to 6 inches, and the length depends on actual needs.

________________________________________

Key performance advantages

• Stable drilling pressure control: High weight density ensures that the drill bit continues to effectively break the rock, reduces the risk of drilling, and improves the mechanical drilling speed (ROP).
• Anti-fatigue and anti-impact: The transition structure and material process are optimized. The design of the thickened part not only increases the weight and rigidity of the drill pipe, but also improves the stress distribution of the drill pipe, reduces the fatigue damage of the drill pipe under alternating loads, and the cyclic stress life is 50% higher than that of ordinary drill pipes.
• High efficiency and compatibility: API standard thread (such as NC50, 6-5/8" REG), seamless connection between drill collar and ordinary drill pipe, simplifying drill string assembly.
• Economical and efficient: Replacement of some drill collars, reducing the total weight of the drill string and operating costs, suitable for economic development of deep wells/ultra-deep wells.
• Stable drill string assembly: By increasing the weight and rigidity of the lower part of the drill string, the weighted drill pipe can reduce the bending and vibration of the drill string, improve the stability of the drill string assembly, and reduce the probability of well deviation and drilling tool accidents.

________________________________________

Product specifications and models

‌The specifications and models of the weighted drill pipes produced and sold by our company Huichi petro are mainly divided according to the outer diameter, wall thickness, length and steel grade. Common outer diameter sizes are 3.5 inches, 4.25 inches, 5 inches, etc.; wall thickness and length vary according to different usage requirements; steel grades are usually G105, S135 Different steel grades represent different strengths and performances. Users can choose appropriate weighted drill pipe specifications and models according to drilling depth, formation conditions, drilling technology and other factors.

________________________________________

Applicable scenarios

‌Huichi The weighted drill pipes produced and sold by petro are widely used in various types of oilfield drilling operations, especially in the drilling process of complex wells such as deep wells, ultra-deep wells, high-angle wells and horizontal wells, where their advantages are more obvious. In deep and ultra-deep well drilling, weighted drill pipes can provide sufficient pressure for the drill bit to overcome the rock hardness of deep formations and improve drilling efficiency; in high-angle well and horizontal well drilling, weighted drill pipes can stabilize the drill tool assembly, prevent differential pressure sticking, reduce wear and fatigue of the drill pipe, and ensure the control accuracy of the wellbore trajectory. In addition, weighted drill pipes also play an important role in special drilling processes such as directional drilling and coring drilling.

• Deep well/ultra-deep well drill string transition section;
• Horizontal well/extended displacement well friction and torque reduction operation;
• High temperature and high pressure (HPHT) and corrosive gas formations;
• Offshore drilling platform confined space drill string configuration.

________________________________________

Service and Support

• Flexible customization: Supports personalized customization of outer diameter, length, and coating type to match special well conditions.
• Quick response: Stocking in major production areas around the world, providing 48-hour emergency delivery service.
• Full-cycle warranty: 18-month warranty period, free on-site installation guidance and maintenance training.

________________________________________

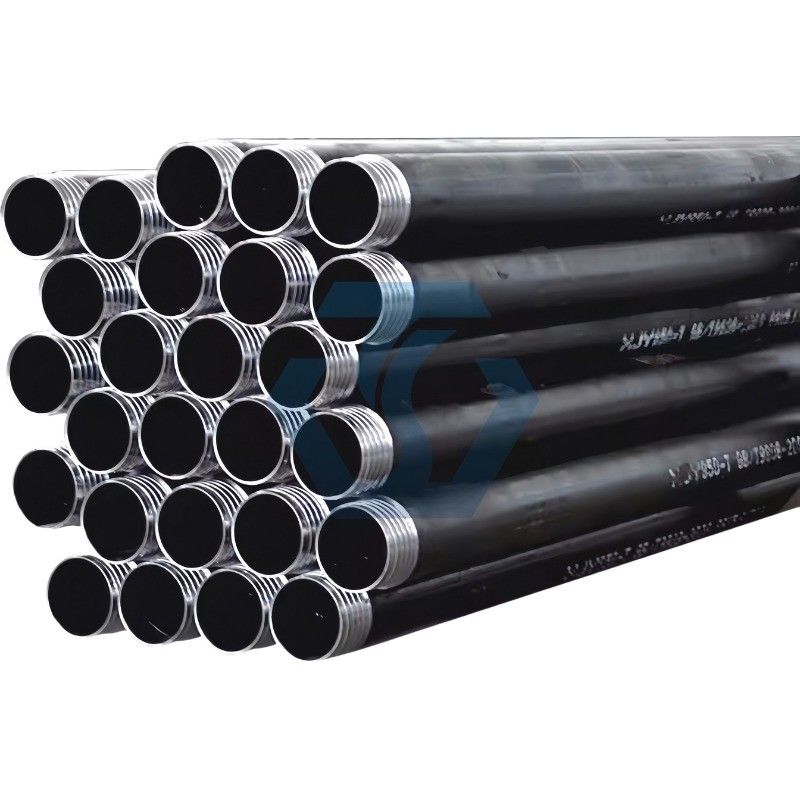

Product display:

________________________________________

Product package:

Product packaging: iron box or iron frame, wooden pallet, wooden box, bulk or customized according to customer requirements.

________________________________________

Product detection:

100% inspection will be carried out before shipment, and video image data and inspection reports will be provided.

________________________________________

Accepted delivery terms:

FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.

________________________________________

About HuiChi (HC) petro:

Shandong Huichi Industry & Trade is a professional supplier of drilling equipment for the oil and gas industry. We are committed to providing the best products and services to customers around the world.

We HuiChi (HC) Petro always regard our customers as our partners and aim to achieve long-term cooperation value. Our Huichi products cover different fields such as oil fields, water wells, HDD, etc.

________________________________________

Why choose HuiChi (HC) petro?

One-stop drilling equipment supply;

Employee engineers have more than 10 years of experience in supplying drilling equipment;

More than 10 people engaged in export business;

More than 40 partner countries and regions;

More than 200 customers having close cooperative relationships;

More than 250+ partner factories as suppliers.

________________________________________

Focus on well drilling equipment , we have been working hard and hope to become your most professional oil & gas equipment supplier and the best partner!
