Model: |
JC40D, JC50D, JC70D, JC90D |
Condition: |
New |
Warranty: |
1 Year |
Core Components: |
Engine, Bearing, Motor, Gear |
Customized: |
Logo/Packaging/Graphic |
Machine Type: |
Oilfield Drilling Equipment |
Dimension(L*W*H): |
6600*3716*2990 |
Machinery Test Report: |
Provided |
Model: |
JC40D, JC50D, JC70D, JC90D |
Condition: |
New |
Warranty: |
1 Year |
Core Components: |
Engine, Bearing, Motor, Gear |
Customized: |
Logo/Packaging/Graphic |
Machine Type: |
Oilfield Drilling Equipment |
Dimension(L*W*H): |
6600*3716*2990 |
Machinery Test Report: |
Provided |

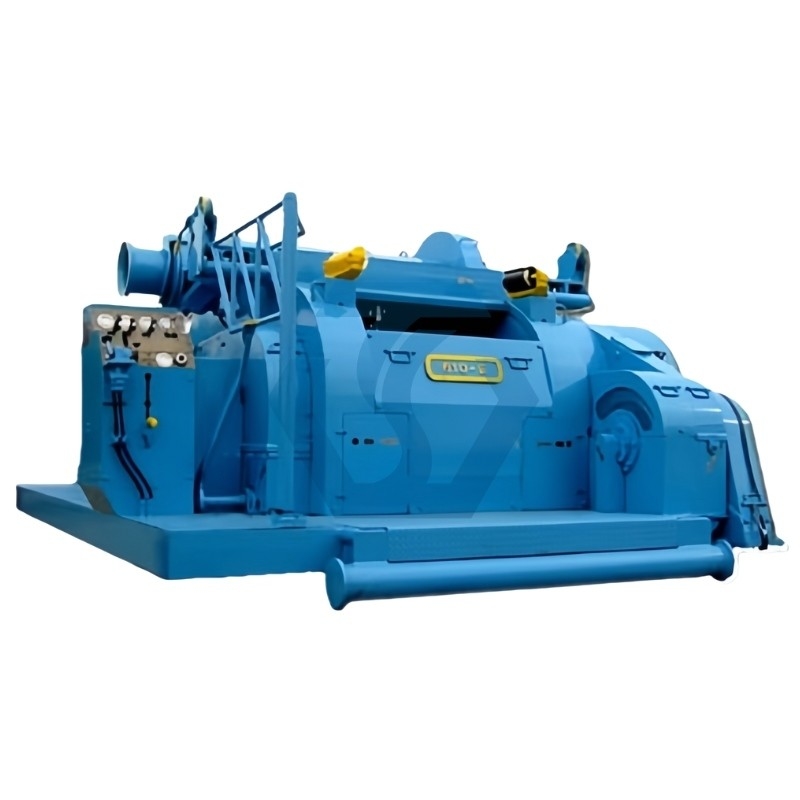

The winch is the core component of the oil drilling rig. It is mainly used for operations such as raising and lowering the derrick , raising and lowering the drill pipe , and raising and lowering the casing.
The winch is an important mechanism for the oil drilling rig to change the speed and maintain a constant drilling pressure outside. It is the core component of the drilling rig and directly determines the drilling capacity of the drilling rig. The wire rope drill line is wound on the traction working drum and extends to the top block and the travelling block , allowing the drill string to move up and down when the drum rotates. The traditional mechanical drive winch is large in size , heavy in weight , and complex in structure. It is difficult to meet the requirements of the new drilling process. Huichi JC Serries winch has simple transmission , compact structure , high power and high utilization rate , good speed regulation performance , and is safe and reliable.
Including: electronic control system , drum shaft assembly , brake system , guide tube assembly , transmission system , lubrication system , etc.
Winch Types:Electric single-shaft winch , DC drive chain drive winch , mechanical drive winch. We can customize qualified products according to your actual needs.
1. All pulleys and shafts are made of alloy steel;
2. The chain is pressure lubricated;
3. The drum has grooves , and the low-speed and high-speed ends of the drum shaft are equipped with ventilation pneumatic tube clutches;
4. The brake disc is forcedly cooled by circulating water , and the surface is medium-frequency induction hardening , providing excellent wear resistance and long service life;
5. High-pressure drilling fluid sealing system. The main brake is a hydraulic disc brake , and the auxiliary brake is an electromagnetic eddy current brake;
6. The power configuration is reasonable , the drive mode has mechanical drive and electric drive , and the main and auxiliary brakes are reasonably configured to meet the power transmission and drilling and well repair operation requirements of drilling rigs and well repair rigs;
7. Convenient transportation , the winch and power unit can be installed on a skid seat to meet the requirements of separate transportation.
Oilfield Well Drilling , Energy , Mining.
| Model | Drilling depth(127mm Drill pipe)(m) | Rating Power hp (kW/ HP) |
Max. Fast line Pull lbf.(kN) |
Applicable wire rope diameter(mm) | Gears for Hoisting Speed | Drum size (Dia. x width) (in)(mm) | Brake disc size (Dia. x width) mm(in) | Auxiliary Brake | Weight(kg) | width(m) |
| JC14 | / | 257/350 | 140 | φ22 | / | φ353x800 | Band brakeφ970X210 | 3150 | 3 | |
| JC18 | / | 330/450 | 180 | φ22 | / | φ429x912 | Band brakeφ1070X210 | 124WCB | 6350 | 3 |
| JC20 | / | 450/550 | 200 | φ26/φ29 | / | φ450x912 | Band brakeΦ1070x350 | 224WCB | 4936 | 3 |
| JC30DB | 1500~2500 | 550/750 | 210 | φ29/φ32 | Step-less speed changing | φ560x1040 | hydraulic disc brake PS30 φ1500x60 | energy- consumption brake | 18800 | 3.2 |
| JC40DB | 2000~3200 | 735/1000 | 280 | φ32 | Step-less speed changing | φ640x1208 | hydraulic disc brakePS40 φ1500x60 | energy- consumption brake | 24864 | 3.2 |
| JC40DJ | 2000~3200 | 735/1000 | 280 | φ 32 | 4 | φ640x1208 | hydraulic disc brake PS40 φ1500x60 | DWS40 Electromagnetic eddy current brake | 23315 | 2.6 |
| JC40DZ | 2000~3200 | 735/1000 | 280 | φ 32 | 4 | φ640x1208 | Band brake | 236WCB | 31076 | 3.2 |
| JC50DB | 2800~4500 | 1100/1500 | 350 | φ35 | Step-less speed changing | φ685x1300 | hydraulic disc brake PS50 φ1520x76 | energy- consumption brake | 35260 | 3.1 |
| JC50D | 2800~4500 | 1100/1500 | 350 | φ35 | 4+4R Step-less speed changing | φ685x1300 | hydraulic disc brake PS50 φ1520x76 | DWS50 Electromagnetic eddy current brake | 37,980+12,400 | 3.2 |
| JC70DB | 4000~6000 | 1470/2000 | 485 | φ 38 | Step-less speed changing | φ770x1300 | hydraulic disc brake PS70 φ1520x76 | energy- consumption brake | 45530 | 3.2 |
| JC70D | 4000~6000 | 1470/2000 | 485 | φ38 | 4+4R Step-less speed changing | φ770x1300 | hydraulic disc brake PS70 φ1520x76 | DWS70 Electromagnetic eddy current brake | 40,100+12,400 | 3. 2 |
Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.
100% tested before delivery.
Express, truck , train , air , sea , or customized according to customer requirements.
Shandong Huichi Petroleum Equipment Co.,Ltd. is a professional supplier of drilling equipment for the oil and gas industry.
Our Huichi products cover all aspects of drilling , operations , oil production , etc. We have rich experience in the production and export of oil drilling supporting equipment.
One-stop drilling equipment supply;
More than 10 years of experience in drilling equipment supply;
More than 10 people engaged in export business;
More than 40 partner countries and regions;
More than 200 customers having close cooperative relationships;
More than 250+ partner factories as suppliers.
