Product Details
Place of Origin: China
Brand Name: HuiChi (HC)
Certification: API 16D
Model Number: BOP Testing Unit Series
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: $3000-30000/Set
Packaging Details: Export Wooden Case And Wooden Palle Or According To Customers' Requirements.
Delivery Time: Within 5-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 Sets Per Month
Condition: |
New |
Warranty Of Core Components: |
1 Year |
Customized: |
Logo / Packaging / Graphic |
Machinery Test Report: |
Provided |
Material: |
High Manganese Steel |
Use: |
Well Drilling |
Advantage: |
Reliability And Durability |
Core Components: |
Engine |
Condition: |
New |
Warranty Of Core Components: |
1 Year |
Customized: |
Logo / Packaging / Graphic |
Machinery Test Report: |
Provided |
Material: |
High Manganese Steel |
Use: |
Well Drilling |
Advantage: |
Reliability And Durability |
Core Components: |
Engine |
The BOP control device products produced and sold by our company Huichi Petroleum are: complete models, quality assurance, and timely delivery. We warmly welcome new and old customers at home and abroad to come for inspection and order, and win-win cooperation!

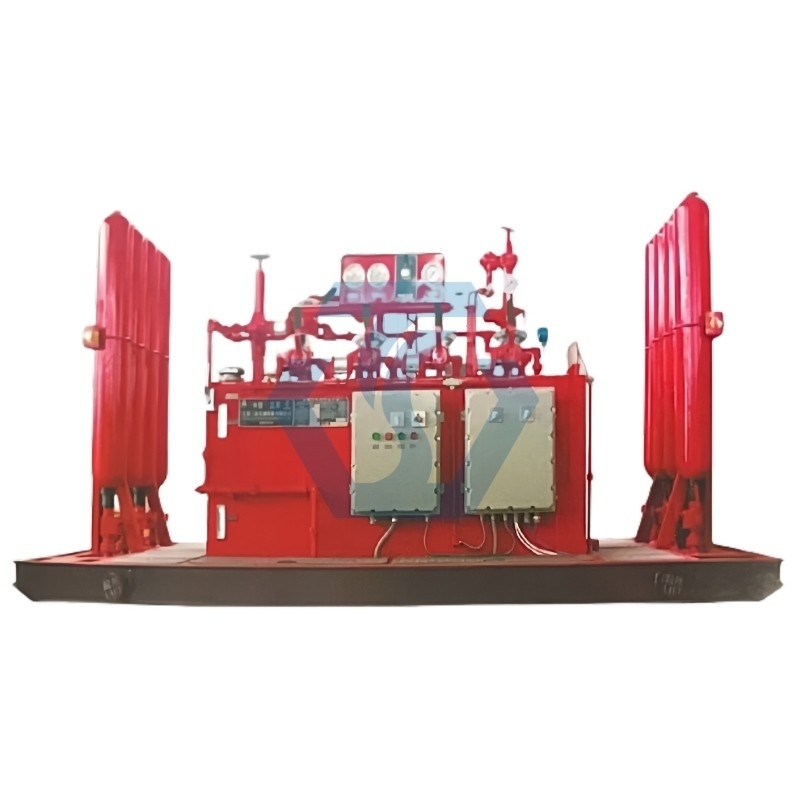

The ground BOP control device (hereinafter referred to as the control device) is an important equipment for controlling the wellhead BOP group and the hydraulic throttle valve and well-killing valve. It is an indispensable device for preventing blowouts in drilling and well repair operations. Correct use and maintenance of the control device are very important.
Composition: It is mainly composed of oil tanks, pump groups, accumulator groups, manifolds, various valves, instruments and electric control boxes, etc.
1. Stable operation, small size, light weight, low noise, easy maintenance, high efficiency;
2. Can be controlled locally and remotely, monitor, record, print, and track record values;
3. Can be used in factories or installed on vehicles on site;
4. According to API 16D;
5. Equipped with three independent power sources. The FKQ series is equipped with electric oil pump/manual pump/pneumatic oil pump;
6. Special orders can be made when customers have special technical indicators;
7. The electric oil pump is equipped with an automatic start and stop control device. Even if the automatic control device fails during normal operation, the overflow valve can overflow quickly to ensure system safety;
8. The opening and closing actions of each blowout preventer are controlled by the corresponding three-position four-way rotary valve. The FKQ series control device can be directly changed manually or by remote control of the rotary valve by the driller's platform;
9. The annular blowout preventer control circuit of the FKQ series control device is equipped with a pressure regulating valve, which can adjust the control pressure of the annular blowout preventer.
Oilfield Well Drilling,Energy,Mining.
| System nominal pressure | 21 Mpa | 3000 psi |
| System maximum working pressure | 34.5MPa | 5000psi |
| System pressure adjustment range | 0～14 Mpa | 0～2000 psi |
| Accumulator nitrogen filling pressure | 7±0.7 Mpa | 1000±100 psi |
| Pressure controller setting range | 19～21 Mpa | 2700～3000 psi |
| Liquid-gas switch setting range | 17.5～21MPa | 2500～3000 psi |
| Gas source pressure | 0.65～0.8 Mpa | 93～115 psi |
| Power supply | 380±19 V／50Hz | |
| Ambient temperature | -40~120℃ | |
| Note: Special ordering is required when exceeding the above technical indicators. | ||
Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.
100% tested before delivery.
Express, truck , train , air , sea , or customized according to customer requirements.
