Product Details
Place of Origin: China
Brand Name: HuiChi (HC)
Certification: API 7K
Model Number: YJ Series
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: $500-5000/Set
Packaging Details: Export Wooden Case And Wooden Palle Or According To Customers' Requirements.
Delivery Time: Within 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 Sets Per Month
Condition: |
New |
Warranty Of Core Components: |
1 Year |
Customized: |
Logo / Packaging / Graphic |
Usage: |
Boat , Crane , Oil Field Drilling , Port Hoisting |
Machinery Test Report: |
Provided |
Max Hoisting Height: |
12m / Min |
Material: |
High Manganese Steel |
Core Components: |
Gear , Pump |
Rated Pull Force: |
0.2T To 25T |
Condition: |
New |
Warranty Of Core Components: |
1 Year |
Customized: |
Logo / Packaging / Graphic |
Usage: |
Boat , Crane , Oil Field Drilling , Port Hoisting |
Machinery Test Report: |
Provided |
Max Hoisting Height: |
12m / Min |
Material: |
High Manganese Steel |
Core Components: |
Gear , Pump |
Rated Pull Force: |
0.2T To 25T |
This product uses high-quality materials to improve impact force and surface wear resistance. It is quiet, high-precision, compact, strong, durable, can bear composite in all directions, and has a long service life.

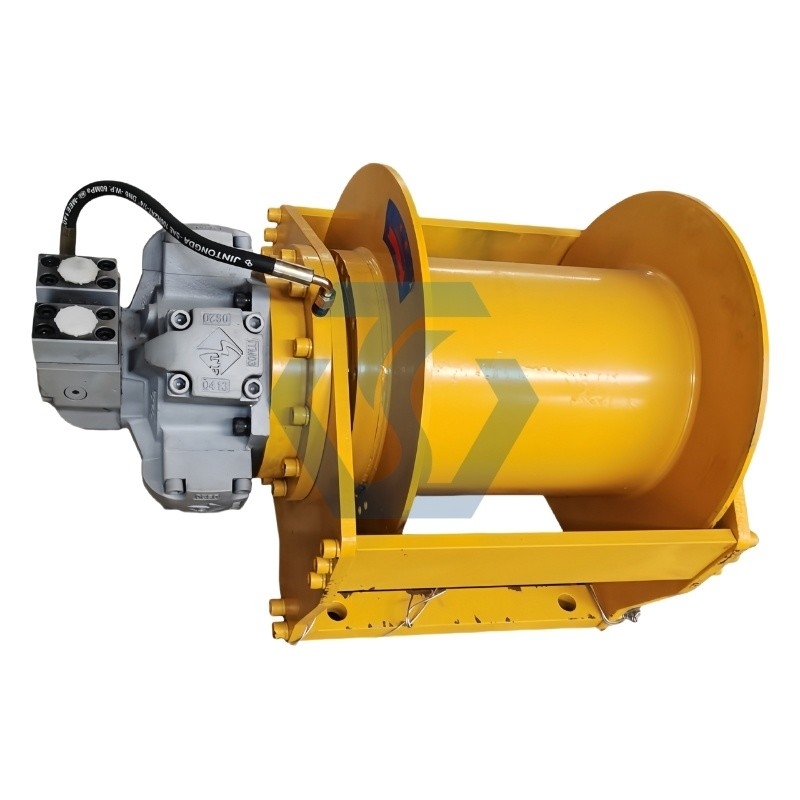

The YJ series hydraulic winches produced and sold by Huichi petro are composed of various professional distributors, hydraulic motors, brakes, C-type gear reducers, drums, racks and other components of our company. The winch comes with a valve group, which not only simplifies the hydraulic system, but also improves the transmission device and working reliability. The hydraulic valve group that comes with the YJ hydraulic winch can successfully solve the problems of empty hook shaking and secondary sliding during lifting in general winches, making the YJ hydraulic winch run smoothly during lifting and lowering. In addition, it also has the characteristics of high efficiency during starting and working, low energy consumption, low noise, beautiful appearance, compact size, good economy, etc. It is widely used in various lifting equipment such as railway locomotives and automobile cranes, ships, oil field drilling, geological exploration, coal mines, ports, etc.
1.Hydraulic Winch Produce and design according to API 7K standard;
2.High strength steel body and parts, longer service time;
3.Compact structure, small size, light weight, large pulling force, easy installation, easy operation, stable lifting and easy maintenance.
It is widely used in various lifting equipment such as railway locomotives and truck cranes, ships, oil field drilling, geological exploration, coal mines, ports, etc.
| Model | YJ3/110 | YJ5/100 | YJ16/60 | YJ16/100 | |
| Flow Rating | L/min | 120 | |||
| gpm | 31.7 | ||||
| Pressure rating | MPa | 16.6 | |||
| psi | 2400 | ||||
| Max. Pull | kN | 30 | 50 | 160 | 160 |
| US ton | 3.3 | 5.5 | 17.6 | ||
| Max. Line Speed | m/min | 23 | 11 | 5.8 | |
| ft/min | 73 | 36 | 19 | ||
| Wire rope Dia. | mm | 12.7 | 20.5 | 28 | |
| in | 1/2 | 3/4 | 13/32 | ||
| Rope Storage | M | 110 | 100 | 60 | 110 |
| ft | 360 | 328 | 197 | 328 | |
Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.
100% tested before delivery.
Express, truck , train , air , sea , or customized according to customer requirements.
