Product Details
Place of Origin: China
Brand Name: HuiChi (HC)
Certification: CE , ISO9001
Model Number: JZG Series
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: $1200-2500/Set
Packaging Details: Export Wooden Case And Wooden Palle Or According To Customers' Requirements.
Delivery Time: Within 5-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Sets Per Month
Condition: |
New |
Warranty Of Core Components: |
6 Months |
Customized: |
Logo / Packaging / Graphic |
Core Components: |
Anchor |
Machinery Test Report: |
Provided |
Usage: |
Oil Rig |
Weight: |
30 KG |
Type: |
Horizontal And Vertical |
Condition: |
New |
Warranty Of Core Components: |
6 Months |
Customized: |
Logo / Packaging / Graphic |
Core Components: |
Anchor |
Machinery Test Report: |
Provided |
Usage: |
Oil Rig |
Weight: |
30 KG |
Type: |
Horizontal And Vertical |

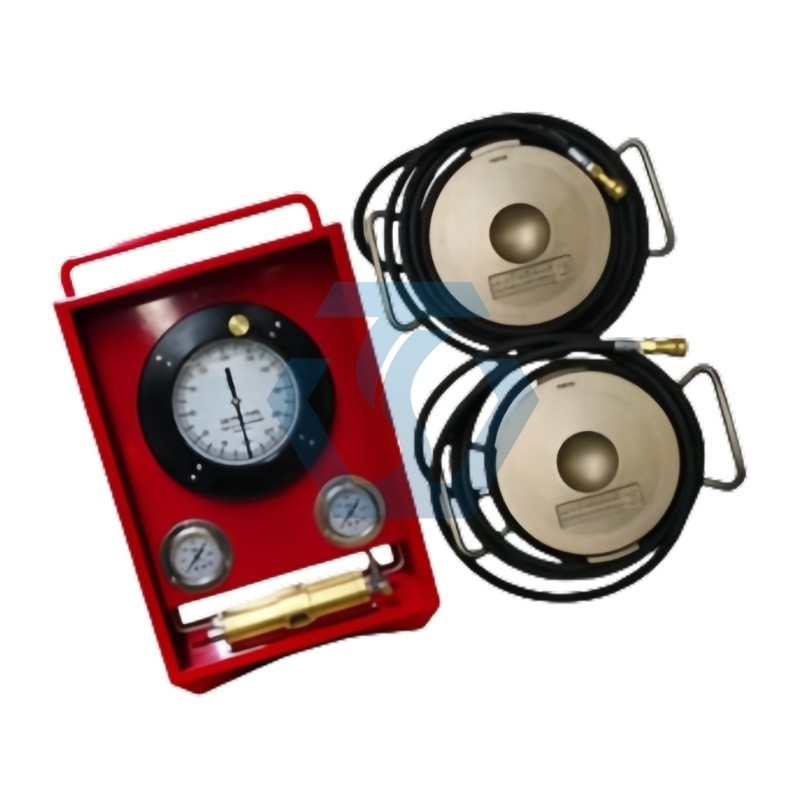

Our company Huichi Petro produces and sells the JZG series steering weight indicator. The instrument is small in size and light in weight. It has changed the traditional sensor method and adopted the anchor sensor design. The structure is more reasonable and safe, and the installation and use are faster, more flexible and convenient. You only need to clamp the sensor directly at the root of the dead rope to achieve pressure conduction. The entire installation process only takes 5-10 minutes. It mainly consists of a secondary weight indicator, an anchor sensor and a high-pressure rubber tube. It is suitable for small drilling and well repair operations below 3,000 meters. It is mainly used on mast drilling rigs or tower drilling rigs. Two types: horizontal and vertical.
The weight indicator produced and sold by our company Huichi Petro is suitable for: a display instrument that indicates and records the changes in the suspended weight and drilling pressure of drill tools during the drilling or well repair operations of various drilling rigs and well repair rigs in petroleum and geological exploration, helping the drilling driver to master the use of the drilling rig, the working parameters of the well repair rig in drilling or well repair operations, and judge the working status of the drill tools. It is usually used in conjunction with a recorder, a dead rope fixer or a sensor.
Composition:Deadine anchor,steel wire line,sensor,hose,recorder,weight Indicator.
Description: The weight indicator is connected to the sensor through a connecting pipeline and a quick connector. The liquid pressure generated by the sensor acts on the spring tube, and the pointer is deflected by the amplification mechanism to indicate the weight of the downhole drilling tool. The short pointer is the weight pointer (yellow), and the long pointer is the sensitive pointer (red).
There are one weight pointer and one sensitive spring tube in the weight indicator. The free end displacement of the spring tube under the action of liquid pressure drives the central gear shaft through the connecting rod and umbrella gear of the amplification mechanism, causing the pointer to deflect and indicate the hanging weight of the big hook and the drilling pressure.
The deflection angle of the sensitive pointer is four times the deflection angle of the weight pointer.
The dead rope fixer is a mechanism that converts the dead rope tension of the drilling rig into liquid pressure.
The dead rope fixer consists of a pulley, a base, and a sensor.
The sensor is one of the main components of the dead rope fixer. It squeezes the liquid surface through the diaphragm and converts it into a pressure signal, which is transmitted to the weight indicator and recorder. Therefore, it is an energy conversion element.
1. Maximum dead rope tension can reach 200kN;
2. The portable device can be installed near the operator;
3. Adjustable damping valve can adjust the sensitivity of pointer movement;
4. Wire rope size: 22mm, 26mm, 28mm, 32mm;
5. The standard hydraulic pipeline length is 6 meters, and other lengths can be customized;
6. Each set of weight indicator is equipped with 10 dials, which is convenient for customers to replace during maintenance.
1. Maximum load;
2. Dial unit;
3. Number of wire rope strands;
4. Wire rope size.
Oilfield Well Drilling , Energy , Mining.
| Deadline Model | Weight indicator Model | Max. Deadline Pulling Force (kN) | Qty of the line | Capacity (kN) | Output pressure sensor (MPa) | |
| Vertical | JZG42 | JZ500 | 420 | 12 | 5040 | 6 |
| 10 | 4200 | |||||
| JZG35 | JZ400 | 350 | 12 | 4200 | ||
| 10 | 3500 | |||||
| JZG24 | JZ250 | 340 | 10 | 2880 | ||
| 8 | 2400 | |||||
| JZG20 | JZ200 | 200 | 10 | 2000 | ||
| 8 | 1600 | |||||
| JZG18A | JZ150A | 180 | 10 | 1800 | ||
| 8 | 1440 | |||||
| 6 | 1080 | |||||
| JZG15A | JZ100A | 150 | 6 | 1200 | ||
| 4 | 900 | |||||
| Horizontal | JZG41 | JZ500A | 410 | 12 | 4920 | 6.83 |
| 10 | 4100 | |||||
| JZG34A | JZ400B | 340 | 12 | 4080 | 6 | |
| 10 | 3400 | |||||
| JZG18 | JZ150 | 180 | 8 | 1440 | ||
| 6 | 1080 | |||||
| JZG15 | JZ100 | 150 | 8 | 1200 | ||
| 6 | 900 | |||||
| JZG10A | JZ40 | 100 | 6 | 600 | ||
| 4 | 400 | |||||
| We can designed as your request. | ||||||
Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.
100% tested before delivery.
Express, truck , train , air , sea , or customized according to customer requirements.
