API Standard Shale Screen Mesh For Solid Control Equipment Shale Shaker

Product Description:

    The oil vibrating screen is mainly composed of a steel frame and 2 to 3 layers of stainless steel mesh tightly bonded to the frame. The frame is welded from high-strength square steel pipes or flat steel and has multiple reinforcing support ribs. The mesh can be combined with the frame through a metal liner or directly bonded to the frame. Each screen is accompanied by a special rubber plug to repair the damage to the mesh surface. Our factory can manufacture steel frame screens of various specifications and sizes according to the needs of different customers.

    The plate vibrating screen produced and sold by our company Huichi petro is currently the most commonly used oil mud vibrating screen, which can be widely used in drilling operations under different conditions. This product is usually composed of 2 to 3 layers of stainless steel mesh bonded to an open metal liner. At the same time, the screen is accompanied by a special rubber plug to repair the damage to the mesh surface, which can effectively save time and reduce production costs. Our company also sells wave-shaped vibrating screens, frame-shaped vibrating screens and composite hook-shaped vibrating screens (soft vibrating screens). The mesh range and size of each different petroleum vibrating screen, and the models of petroleum vibrating screens that match them are also different. We can also customize different models and specifications of petroleum vibrating screens according to the different needs of customers.

Product Features:

  1. The mesh counts of each layer of the screen are different, and accurate and reasonable matching can make the screening effect more delicate;

  2. The high-strength steel frame and supporting ribs, as well as the moderately tense screen, form a reliable whole, which greatly increases the flow rate, strength and service life that the screen can withstand;

  3. The wedge-shaped quick tensioning device makes the screen more convenient and saves downtime for replacement;

  4. The grid of the lining plate divides the mesh into multiple independent small mesh surfaces, which can prevent local damage and excessive expansion. At the same time, there are special rubber plugs to repair damage, which can save time and reduce the cost of use;

  5. This product is generally made of 2 or 3 layers of stainless steel 304 or 316 mesh and a metal tray with openings. It can be produced by hand or machine according to different customer needs. Due to the different mesh counts of the mesh and the corresponding size differences of the openings of the metal tray, we strive to achieve more effective screening area while ensuring the strength of use. The mesh number of the screen is generally in the range of 20 to 325 meshes, and special mesh numbers can be customized;

  6. The upper fine wire mesh cloth plus the middle and bottom coarse wire low mesh cloth are tightly bonded with the metal support plate with different thicknesses that customers can choose below, which greatly enhances the use strength of the entire screen cloth. Depending on the model and different customer needs, the lower metal support plate can be punched into hexagonal, rectangular, square, etc., relying on the upper screen cloth, the entire screen is divided into multiple different independent small mesh surfaces to prevent local excessive damage and better extend the service life.

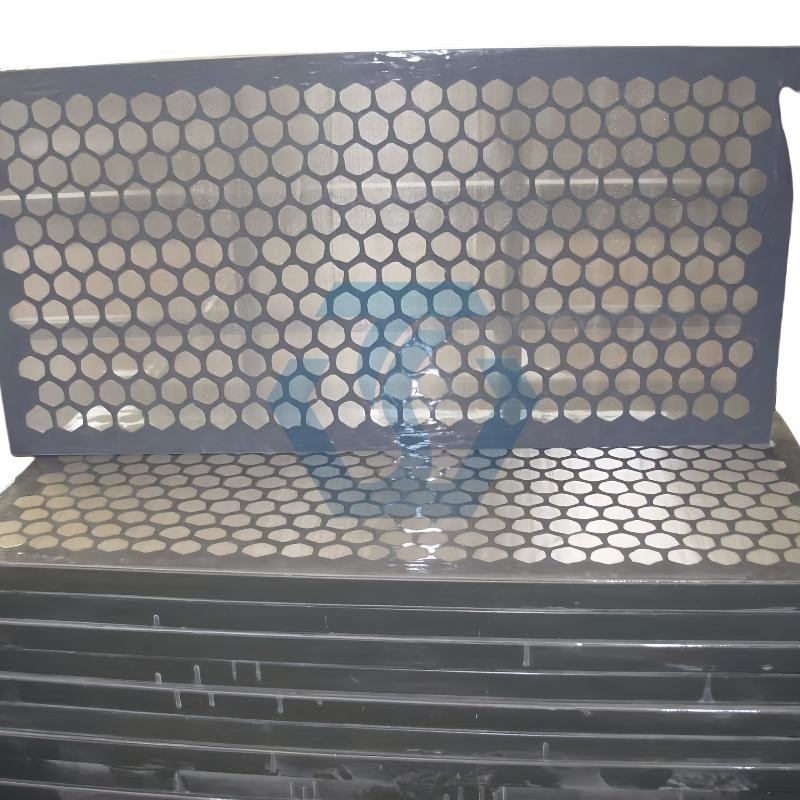

Product Display:

Product Application:

    Oilfield Well Drilling , Energy , Mining.

Product Model Parameters:

Product Package:

    Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.

Product Detection:

    100% tested before delivery.

Product Delivery Method:

    Express, truck , train , air , sea , or customized according to customer requirements.
