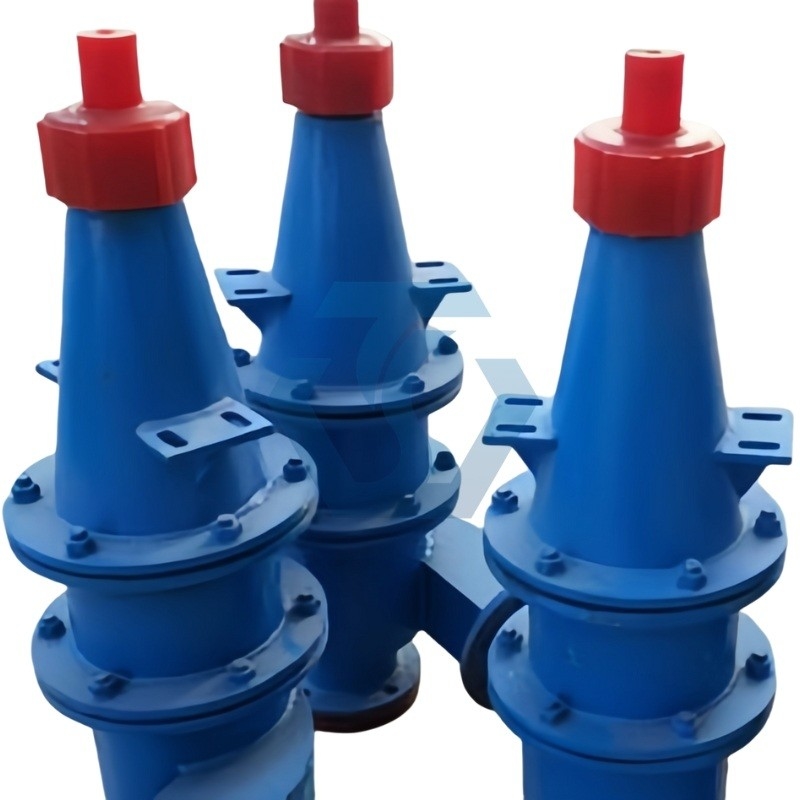

Solid Control Desander Sand Hydrocyclone Separator Cyclone For Well Drilling

Solid Control Hydrocyclone Equipment System Desander Sand Hydrocyclone Separator Cyclone For Well Drilling

Product Description:

    Our company Huichi petro produces and sells a full range of hydrocyclones and hydrocyclone units, with a minimum order of one piece, preferential prices and guaranteed quality.

    The hydrocyclone is a device used to separate and remove heavier coarse particles of mud and sand from sewage, and is sometimes also used for mud dehydration. There are two types: pressure type and gravity type. The hydrocyclone consists of a hollow cylinder at the top and an inverted cone at the bottom that is connected to the cylinder. The two form the working cylinder of the hydrocyclone. In addition, the hydrocyclone also has a feed pipe, an overflow pipe, an overflow duct and a sand settling port. The hydrocyclone uses a sand pump and water or heavy medium as the medium. It enters the centrifugal force field with dozens to hundreds of times the gravity acceleration from the top along the tangent to classify and separate the material particles. The coarse and heavy particles are thrown to the wall of the device and rotate downward and discharged together with the concentrated liquid formed. The smaller particles are discharged with the secondary upward vortex after rotating to a certain extent. According to its different uses, it can be divided into grinding and classification cyclones, desludging cyclones, concentration cyclones, desanding cyclones, etc.

Construction principle:

    Hydrocyclone has no moving parts and simple structure; large production capacity per unit volume, small footprint; high classification efficiency (up to 80% to 90%), fine classification particle size; low cost, low material consumption.

    The FX series cyclone produced and sold by our company Huichi petro adopts multi-cone nonlinear centrifugal classification technology; it has a multi-section cone angle design, high centrifugal strength, fine classification particle size; the cyclone pressure drop is small, and the cyclone processing capacity is increased; the feed resistance is small, the energy consumption is low, the operation is stable, the footprint is small, and the operating cost is low.

    We can also design products for customers with personalized structures. According to the material properties and working conditions, we can choose different structures and materials. Our technical team provides you with professional and personalized selection and technical services.

In order to meet the customer's other requirements for wear under different materials and industrial and mining conditions, the FX series cyclones will use different materials. The following are the main materials used to reduce wear: low carbon steel shell, rubber lining (FX-GX series); low carbon steel shell, ceramic lining (FX-GT series); polyurethane (FX-PU series); low carbon steel shell, polyurethane lining (FX-GJ series); low carbon steel shell, KM wear-resistant ceramic lining (FX-GK series) and other series.

Product Features:

  1.Save floor space;

  2.Low circulation load, small inlet resistance, low energy consumption;

  3.Less underflow, high classification efficiency; Large processing capacity;

  4.Reduce wear, excellent corrosion resistance; Stable Performance;

  5.Smooth inner surface, high classification accuracy; The classification particle size can reach 10μm;

  6.Low construction expense;

  7.Low maintenance charge;

  8.Easy to attach and detach.

Product Display:

Product Application:

    Oilfield Well Drilling , Energy , Mining.

Product Model Parameters:

Product Package:

    Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.

Product Detection:

    100% tested before delivery.

Product Delivery Method:

    Express, truck , train , air , sea , or customized according to customer requirements.
