Features: |
High Quality |
Model: |
ZP175/ZP205/ZP275/ZP375/ZP495 |
Condition: |
New |
Warranty: |
6 Months |
Use: |
Oil Drill Rig |
Customized: |
Logo/Packaging/Graphic |
Machine Type: |
Oilfield Drilling Equipment |
Machinery Test Report: |
Provided |
Features: |
High Quality |
Model: |
ZP175/ZP205/ZP275/ZP375/ZP495 |
Condition: |
New |
Warranty: |
6 Months |
Use: |
Oil Drill Rig |
Customized: |
Logo/Packaging/Graphic |
Machine Type: |
Oilfield Drilling Equipment |
Machinery Test Report: |
Provided |
________________________________________

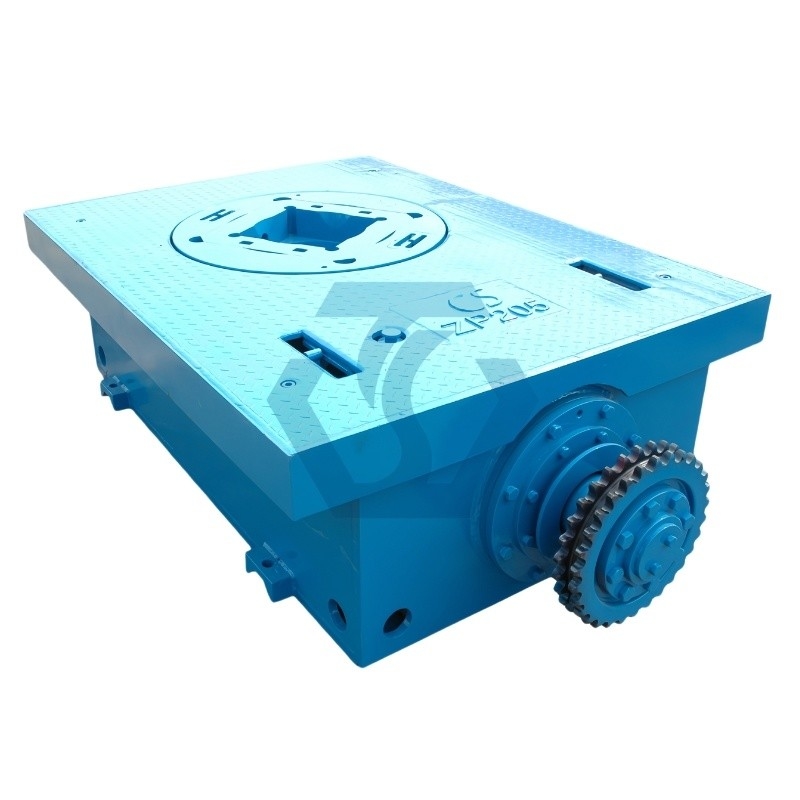

The turntable of drilling equipment is an important part of the drilling rig. It is a rotating part with a square hole in the center. A turntable is installed at the wellhead of the drilling platform. The square hole in the rotating part of the center of the turntable passes through the square drill rod at the top of the drill string. The square drill rod is connected to the drill string and the drill bit below. The power machine drives the horizontal axis of the turntable, and the horizontal axis drives the turntable to rotate. The turntable drives the square drill rod through the square tile and square bushing. When the turntable is driven, the turntable will drive the drill string and the drill bit to rotate together, thereby breaking the rock, so that the wellbore will be deepened as the drill string is continuously lengthened, and the drill cuttings will be returned to the ground with the circulating mud.
________________________________________
1. Turntable: It is a rotating part, installed in the upper and lower rings of the main and auxiliary bearings, supported on the base through the main bearing, with a square seat hole on the upper part for installing the square tile. The square tile cooperates with the square bushing to transmit the torque to the active drill rod and the pipe string through the four sides to achieve rotation.
2. Base: It mainly plays a supporting role. It is usually formed by welding steel castings with steel plates after rough machining, and then fine-machined after overall annealing to eliminate stress, which can ensure the stability of the turntable.
3. Transmission system: It includes transmission gears, transmission shafts, etc. The transmission gears are generally medium-hardened bevel gears with high strength, stable transmission, and large torque transmission; the transmission shaft is an alloy forging and tempered, and the shaft end can be installed with sprockets and flanges to adapt to various transmission methods.
4. Sealing device: Common ones are labyrinth seals and extrusion seals. The labyrinth seal has several annular sealing teeth arranged in sequence around the turntable to form a tortuous labyrinth to prevent leakage; the extrusion seal adjusts the sealing performance by adjusting the pressing force of the pressure ring on the extrusion ring to prevent mud and foreign matter from invading the bearing cavity.
________________________________________
Classification by drive mode: There are electric turntables, hydraulic turntables and mechanical turntables. The electric turntable has the advantages of high transmission efficiency and convenient speed regulation; the hydraulic turntable has the characteristics of large output torque and stable operation; the mechanical turntable has a relatively simple structure and is often used in small drilling equipment.
________________________________________
The turntable produced and sold by our company Huichi petro is manufactured according to API 7K specifications. The shell is a cast steel and steel plate welded structure, and the base is a cast steel part. It is welded to the steel plate after rough machining and finely machined to eliminate stress after internal annealing. The transmission gear is a medium-hard tooth surface arc point gear with high strength, stable transmission and large transmission torque. The raw material quality standards are strict, and the product quality is guaranteed from the source.
1. Design and manufacturing standards: strictly follow API 7K and SY/T 5080 standards;
2. Performance advantages: stable operation, strong load-bearing, light weight; the locking mechanism is firm and reliable, and the installation and maintenance operations are simple and convenient, effectively reducing the cost of use and maintenance.
3. Shell structure: The shell adopts a cast steel and steel plate welded structure, and the base is a cast steel part. After rough machining, it is welded with steel plate to form a shell, and then annealed as a whole before fine machining to ensure that the shell structure is stable and has excellent performance.
4. Transmission gear: It adopts medium-hardened bevel gears with high strength, stable transmission, large torque transmission, and long service life, providing reliable guarantee for the stable operation of the equipment.
5. Overall performance: The transmission shaft is an alloy forging and has been tempered. It has excellent overall mechanical properties and is suitable for large torque work. The sprocket and flange can be installed at the shaft end, which can adapt to various transmission methods.
6. Bushing performance: The main bushing is made of alloy cast steel and tempered. It has high strength and reliable performance, ensuring the normal operation of the equipment under complex working conditions.
________________________________________
Drilling equipment turntables are widely used in oil, natural gas, geological exploration, hydrogeological surveys, mining exploration and other fields. On oil drilling platforms, turntables are one of the indispensable equipment in drilling operations. The stability and reliability of their performance are directly related to the efficiency and safety of drilling operations.
________________________________________
|
|---|
Product packaging: iron box or iron frame, wooden pallet, wooden box, bulk or customized according to customer requirements.
100% inspection will be carried out before shipment, and video image data and inspection reports will be provided.
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
Shandong Huichi Industry & Trade is a professional supplier of drilling equipment for the oil and gas industry. We are committed to providing the best products and services to customers around the world.
We HuiChi (HC) Petro always regard our customers as our partners and aim to achieve long-term cooperation value. Our Huichi products cover different fields such as oil fields, water wells, HDD, etc.
One-stop drilling equipment supply;
Employee engineers have more than 10 years of experience in supplying drilling equipment;
More than 10 people engaged in export business;
More than 40 partner countries and regions;
More than 200 customers having close cooperative relationships;
More than 250+ partner factories as suppliers.
