API 9A Drilling Rig Equipment Galvanized Steel Wire Rope For Oilfield

________________________________________

Product Overview:

    The oilfield drilling wire rope produced and sold by our company Huichi Petro is a high-strength, corrosion-resistant metal rope designed for oil and gas exploration and exploitation. It is widely used in scenes such as drilling platform equipment lifting, downhole tool suspension, drilling tool stabilization and salvage operations. Its core characteristics include high tensile strength, wear resistance, impact resistance and the ability to adapt to extreme environments (such as high temperature, high pressure, and corrosive media). It is an indispensable key component in drilling operations.

In oilfield drilling operations, wire ropes are not only used to suspend drill bits, but also control the drilling and pulling of drill bits through the traveling system composed of drilling equipment such as winches, overhead cranes, and traveling blocks. It can also be used for the traction and fixation of other auxiliary equipment. Due to the particularity of the drilling operation environment, such as the high-speed rotation of the turntable and the rapid drilling of the drill bit, the wire rope will cause severe shaking and free vibration. Therefore, the drilling wire rope needs to have good dynamic load fatigue performance. In addition, the selection of oilfield drilling wire ropes also needs to consider its application scenarios and operation requirements. For example, in offshore oil production, due to the particularity of the marine environment, such as high salinity and high water content, the requirements for wire ropes are also higher. Therefore, when selecting wire ropes, it is necessary to follow relevant standards, such as the "Wire Rope Specification" issued by the American Petroleum Institute (API). In order to adapt to different drilling conditions and equipment requirements, wire ropes of different specifications and models will be used to meet specific operational needs and improve the efficiency of oil production.

________________________________________

Core advantages:

1. High strength and durability

o Tensile strength: Using 6×19S+FC, 6×37+FC and other structural designs, the minimum breaking force can reach 83.2 kN to 1560 kN (taking 1/2 inch to 2 inch diameter as an example), meeting different load requirements1.

o Material optimization: Using alloy-coated steel wire or stainless steel, the anti-rust performance is better than ordinary coated products, suitable for marine and underground corrosive environments.

2. Diversified structural design

o Core type: supports FC (fiber core) and WC (wire core) structures, balancing flexibility and load-bearing capacity.

o Contact mode: provides point contact, line contact and surface contact wire ropes to meet the flexibility and wear resistance requirements of different operating scenarios.

3. International standard certification

o Complies with international standards such as API, DIN, ISO, and has passed China GB/YB certification to ensure the safety and reliability of the product in drilling, lifting, anchoring and other scenarios.

________________________________________

Technical parameters:

________________________________________

Application scenarios:

1. Drilling equipment lifting: used for load lifting of equipment such as cranes and winches to ensure efficient operation of drilling platforms.

2. Downhole tool fixing: cooperate with salvage tools (such as strong magnetic salvage, slip salvage tube) to achieve downhole debris cleaning and tool recovery.

3. Drilling tool stability and suspension: through high-precision structural design, reduce vibration and deviation during drilling and improve operation safety.

________________________________________

Service and support:

• Customized production: Provide full-specification products with diameters from 0.6mm to 100mm, support special coatings, structures and length customization.

• Quality assurance: Equipped with professional test systems (such as torque testing, cyclic pressure testing) to ensure that product performance meets the requirements of extreme working conditions.

_______________________________________

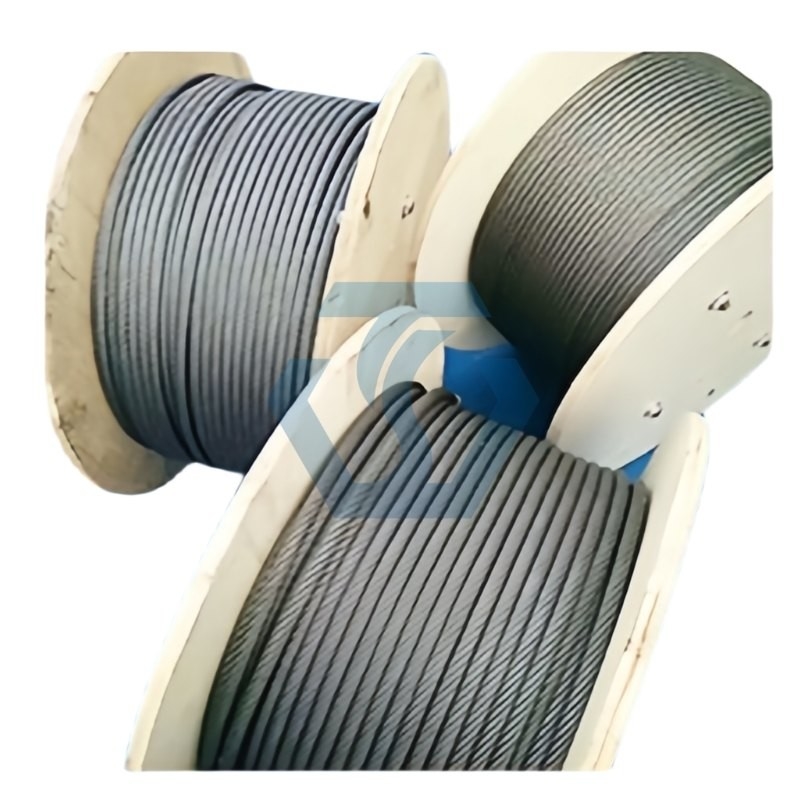

Product display:

________________________________________

Product package:

Product packaging: iron box or iron frame, wooden pallet, wooden box, bulk or customized according to customer requirements.

________________________________________

Product detection:

100% inspection will be carried out before shipment, and video image data and inspection reports will be provided.

________________________________________

Accepted delivery terms:

FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
