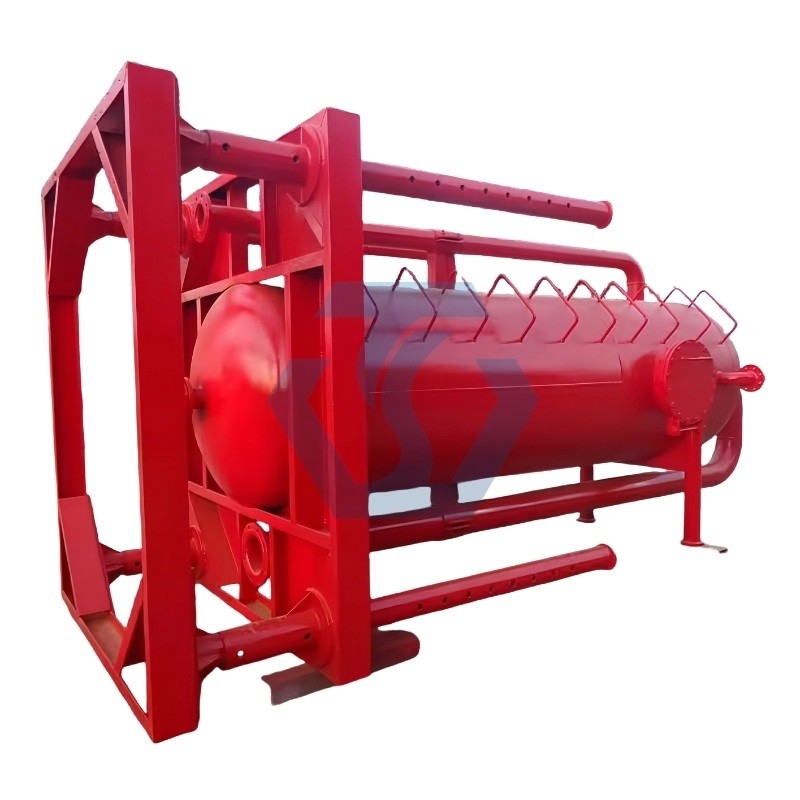

Professional Mud Gas Separator For Effective Gas Invaded Drilling Fluid Treatment

________________________________________

Product Description:

The drilling fluid gas separator (referred to as liquid-gas separator) produced and sold by our company Huichi petro is an indispensable key equipment in the oilfield drilling solid control system. It is mainly used to remove free gas and partially dissolved gas contained in gas-invaded drilling fluid, especially large bubbles with a diameter of ≥Φ3mm, as well as hydrogen sulfide and other toxic gases, to ensure the safety and efficiency of drilling operations.

________________________________________

Working principle:

During the drilling operation, gases in the formation, such as natural gas and hydrogen sulfide, will invade the drilling fluid. These gases will not only affect the performance of the drilling fluid and reduce its ability to carry cuttings, but may also cause serious safety accidents such as blowouts and explosions. The drilling fluid gas separator can separate these harmful gases from the drilling fluid in a timely and effective manner.

The drilling fluid gas separator produced and sold by our company Huichi petro mainly works based on the principles of gravity separation and mechanical separation. When the drilling fluid containing gas enters the separator from the inlet, due to the sudden decrease in flow rate, the density difference between the gas and the drilling fluid under the action of gravity causes the gas to begin to float. At the same time, a series of mechanical separation elements, such as baffles, swirl blades, etc., are set inside the separator. These elements will change the flow direction and speed of the drilling fluid, further promoting the separation of gas and drilling fluid. The separated gas is discharged through the exhaust port at the top and discharged into the atmosphere after safe treatment; while the degassed drilling fluid flows out from the outlet at the bottom and returns to the drilling fluid circulation system.

________________________________________

Product structure:

1. Tank body: As the main structure of the separator, it is made of high-strength carbon steel and has good sealing and pressure resistance.
2. Inlet device: Located on the upper part or side of the tank body, common inlet device forms include tangential inlet, diffusion inlet, etc.
3. Separation element: It is a key component for achieving efficient separation of gas and drilling fluid, including baffles, swirl blades, screens, etc.
4. Exhaust device: Installed on the top of the tank body, it consists of exhaust pipes, valves and flame arresters.
5. Liquid level control system: It consists of liquid level sensors, controllers and regulating valves, etc., to monitor the liquid level height in the tank body in real time.
6. Drain device: Located at the bottom of the tank, the degassed drilling fluid flows out of the separator through the drainage pipe and re-enters the drilling fluid circulation system.

________________________________________

Product advantages:

1. Ensure drilling safety: timely remove harmful gases in the drilling fluid, effectively reduce the risk of safety accidents such as blowouts and explosions.
2. Improve drilling efficiency: improve the performance of the drilling fluid, enhance its ability to carry cuttings, and reduce downhole failures caused by deterioration of the drilling fluid performance.
3. Reduce production costs: through effective degassing of the drilling fluid, extend the service life of the drilling fluid, reduce the waste and replenishment of drilling fluid, and reduce costs.
4. Meet environmental protection requirements: safely treat the separated gas and discharge it to reduce pollution to the environment, which meets the environmental protection requirements of the modern petroleum industry.

________________________________________

Features:

1. Efficient degassing: adopt multiple technologies such as centrifugal separation and physical impact separation to effectively separate free gas and partially dissolved gas in the drilling fluid, significantly improving the quality and performance of the drilling fluid.
2. Diverse specifications: According to the different types of drilling solid control systems, drilling fluid gas separators provide a variety of specifications to meet the needs of different drilling operations.
3. Anti-sanding design: The working liquid level is controlled by bottom drainage and sewage discharge to ensure a constant liquid level in the separator, while solving the problem of sand accumulation in the tank and extending the service life of the equipment.
4. Smooth gas discharge: A gas separation channel is set in the tank to ensure smooth gas discharge and improve the gas treatment effect.
5. Safety performance: Equipped with complete safety protection devices, such as flame arresters, liquid level control systems, etc., it can effectively prevent the occurrence of safety accidents such as blowouts and explosions, and ensure the safety of personnel and equipment.
6. Strong adaptability: According to different drilling conditions and drilling fluid properties, the parameters of the separation element can be adjusted or different types of separation elements can be replaced to achieve effective separation of various drilling fluids.

________________________________________

Application areas:

The drilling fluid gas separators produced and sold by our company Huichi Petro are widely used in various oil and gas exploration and development projects such as onshore oil field drilling and offshore drilling platforms. Whether it is conventional drilling, directional drilling or horizontal drilling operations, as long as it involves the recycling of drilling fluid, it is necessary to use a drilling fluid gas separator to degas the drilling fluid to ensure the safety and smooth progress of the drilling operation.

________________________________________

Product model parameters:

________________________________________

Product display:

________________________________________

Product package:

Product packaging: iron box or iron frame, wooden pallet, wooden box, bulk or customized according to customer requirements.

________________________________________

Product detection:

100% inspection will be carried out before shipment, and video image data and inspection reports will be provided.

________________________________________

Accepted delivery terms:

FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
