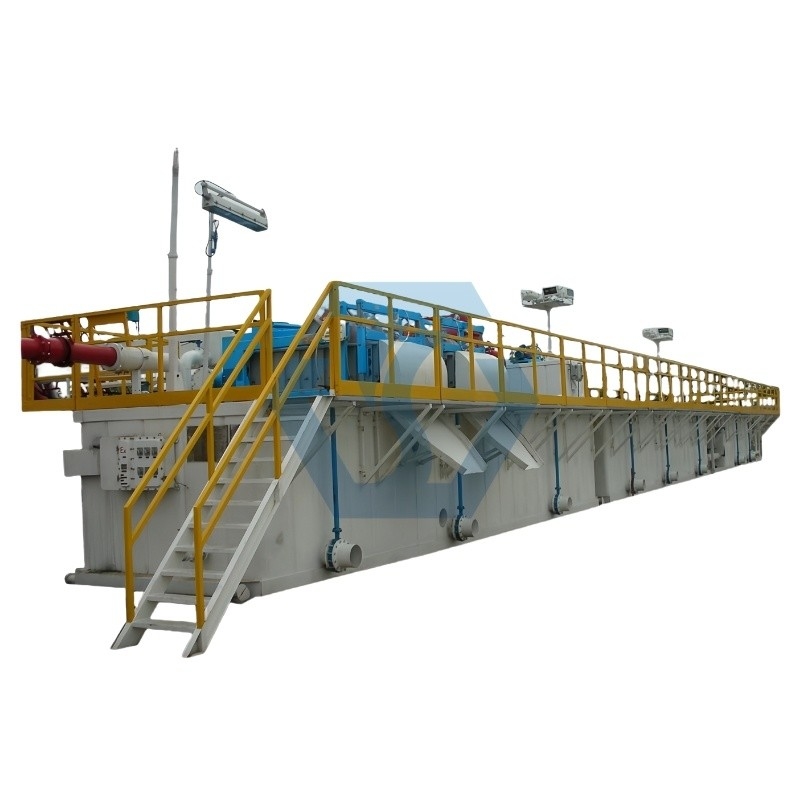

Professional High Performance Mud Tank For Precise Drilling Operations

________________________________________

Product Description:

Our company Huichi Petro can produce various drilling fluid circulation tanks according to user requirements.

The drilling fluid circulation tank of oilfield drilling solids control equipment is the core unit in the oilfield drilling solids control system, which is mainly used to store, circulate and treat drilling fluid. It is like a huge "reservoir", connecting the drilling pump, solids control equipment and other drilling fluid treatment equipment, providing the necessary space and conditions for the purification, performance adjustment and circulation of drilling fluid, ensuring that the drilling fluid can be continuously and stably circulated throughout the drilling operation. The circulation tank has enough space to handle the drilling fluid above the suction and balance pipelines, ensuring that the wellbore is full of liquid when drilling, thereby maintaining the stability and efficiency of the drilling operation.

________________________________________

Core functions:

1. Storage and circulation: Hold a large amount of drilling fluid, provide a stable fluid source for the drilling pump, and achieve continuous circulation.
2. Mixing and blending: Evenly mix additives (such as thickeners and fluid loss reducers) through a stirring device to maintain the performance of the drilling fluid.
3. Solid phase control: Cooperate with solid control equipment to remove harmful solid phases such as cuttings and sand particles to extend the service life of the drilling fluid.
4. Liquid level monitoring: Real-time monitoring of liquid level changes, prevent overflow or vacuum, and ensure operation safety.

________________________________________

Working principle:

The working principle of the drilling fluid circulation tank produced and sold by our company Huichi petro is based on the circulation flow and treatment process of drilling fluid. During drilling operations, the drilling fluid carrying solid particles such as cuttings, silt, and gas returning from the bottom of the well first enters the inlet of the circulation tank through a pipeline. In the tank, the drilling fluid is processed by solid control equipment such as vibrating screens, desanders, desilters, centrifuges, etc., and solid impurities and harmful gases are gradually removed to purify the drilling fluid. The purified drilling fluid is stored in the tank and transported to the bottom of the well through sand pumps and other equipment to achieve the recycling of drilling fluid. During the circulation process, various treatment agents can be added to the tank as needed to adjust and optimize the performance of the drilling fluid to meet the requirements of different drilling conditions.

________________________________________

Product structure:

1. Tank body: The main structure of the circulation tank is welded with corrosion-resistant and high-temperature resistant steel plates. The tank bottom structure is strong and welded with I-beams and channel steels to ensure the stability and load-bearing capacity of the tank body. The tank surface is equipped with a longitudinal and transverse tie rod structure skeleton for installing mixers and other tank surface equipment. At the same time, it is paved with galvanized steel gratings for easy operation and walking. The shape and size of the tank body are designed according to different drilling operation requirements and site conditions, and are generally rectangular or cylindrical. The interior of the tank body is usually divided into multiple compartments, such as the slurry inlet compartment, sedimentation compartment, and slurry cleaning compartment. Each compartment has its specific function, which is used to receive, precipitate and store drilling fluid.
2. Solid control equipment installation platform: A special installation platform is provided on the top of the circulation tank for installing solid control equipment such as vibrating screen, desander, desilter, centrifuge, etc.
3. Stirring device: In order to prevent the precipitation of solid particles in the drilling fluid, the circulation tank is usually equipped with multiple mud agitators.
4. Monitoring device: Integrate liquid level sensor, density meter, thermometer, and data is remotely transmitted to the central control room.
5. Heating device: In some cold areas or when there are special requirements for the temperature of the drilling fluid, the circulation tank is also equipped with a heating device, such as an electric heating tube, steam heating coil, etc.
6. Sewage discharge device: A sewage outlet is provided at the bottom of the circulation tank to discharge the solid impurities and waste drilling fluid precipitated in the tank.
7. Ancillary equipment‌: The drilling fluid circulation tank is usually equipped with drilling fluid vibrating screen, vacuum degasser, desander, desilter, liquid-gas separator, agitator, sand pump and other supporting equipment. These devices work together to treat and purify the drilling fluid to ensure that the performance of the drilling fluid is stable and meets the needs of drilling operations.

________________________________________

Features:

1. The solid control equipment is reasonably laid out, meeting the five-level purification standard (coarse screening, degassing, sand removal, mud removal, centrifugation), so that the mud performance is further optimized;
2. Modular design: The container-type module structure can be flexibly combined according to drilling needs, supports land/sea transportation, and is suitable for rapid installation in remote areas;
3. High-strength material: The tank body is made of high-quality steel plates and steel sections, which are sturdy and durable and can adapt to harsh working conditions;
4. Anti-corrosion treatment: The inner and outer walls are treated with sandblasting and rust removal + epoxy anti-corrosion coating, which is corrosion-resistant and impact-resistant;
5. Multiple specifications: Provide a variety of specifications and capacities, with a single tank volume of 50-150m³, and multiple tanks can be expanded in series, suitable for different drilling scenarios such as land and sea, and meet different drilling needs;
6. Complete supporting equipment: The circulation tank is equipped with a variety of solid control equipment, which can comprehensively treat the drilling fluid and improve the quality of the drilling fluid;
7. Pipeline interface: Standard flange interface, quick connection of mud pumps and solid control equipment, supporting two-way circulation;
8. Safety protection: anti-slip walkway, guardrail, pressure relief valve, fully enclosed design + anti-leakage treatment to reduce the risk of drilling fluid leakage, equipped with cleaning pipelines and monitoring equipment, in line with HSE (health, safety, and environmental protection) standards;
9. High efficiency and energy saving: optimize fluid dynamics design, reduce pipeline resistance, and reduce pumping energy consumption;
10. Intelligent control: optional PLC automatic control system to achieve one-key control of parameters such as stirring intensity and liquid level alarm.

________________________________________

Application:

The drilling fluid circulation tanks produced and sold by our company Huichi petro are widely used in various oil and gas exploration and development projects such as onshore oil field drilling and offshore drilling platforms.

Deep well/ultra-deep well drilling: large-capacity liquid storage capacity to cope with complex working conditions under high temperature and high pressure environment.

Shale gas development: efficient removal of micron-level solid phase to ensure the performance of horizontal well drilling fluid.

Offshore platform operation: anti-salt spray corrosion design to adapt to high humidity and high salinity marine environment.

________________________________________

Selection and customization:

Standard models: 50m³, 80m³, 100m³ and other conventional specifications are available.

Customized services: support non-standard designs (such as explosion-proof grade upgrade, heating and insulation functions, intelligent IoT system).

Supporting solutions: can be matched with mud cleaners, centrifuges, etc. to provide a one-stop solid control system solution.

Product parameters can be adjusted according to customer needs. If you need to know more information or order products, please contact the technical team for exclusive solutions.

________________________________________

Main parameters of drilling fluid circulation tanks produced and sold by our company Huichi petro:

________________________________________

Product display:

________________________________________

Product package:

Product packaging: iron box or iron frame, wooden pallet, wooden box, bulk or customized according to customer requirements.

________________________________________

Product detection:

100% inspection will be carried out before shipment, and video image data and inspection reports will be provided.

________________________________________

Accepted delivery terms:

FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
