Product Details
Place of Origin: China
Brand Name: HuiChi (HC)
Certification: API
Model Number: ESP Series
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: $ 5000 ~ 50000 / Set
Packaging Details: Export Wooden Case And Wooden Palle Or According To Customers' Requirements.
Delivery Time: Within 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets Per Month
Condition: |
New |
Warranty Of Core Components: |
6 Months |
Customized: |
Logo / Packaging / Graphic |
Machinery Test Report: |
Provided |
Size Range: |
2-1/16" ~ 7-1/16" |
Material: |
Alloy Steel \ NBR |
Pressure Range: |
2000 ~ 15000psi |
Usage: |
ESP , Oil And Gas , Geothermal |
Application: |
For Oil Well Production |
Consist: |
Motor , Motor Protector , Gas Separator , Pump, Etc. |
Key Word: |
Oil Well Electric Submersible Pump |
Condition: |
New |
Warranty Of Core Components: |
6 Months |
Customized: |
Logo / Packaging / Graphic |
Machinery Test Report: |
Provided |
Size Range: |
2-1/16" ~ 7-1/16" |
Material: |
Alloy Steel \ NBR |
Pressure Range: |
2000 ~ 15000psi |
Usage: |
ESP , Oil And Gas , Geothermal |
Application: |
For Oil Well Production |
Consist: |
Motor , Motor Protector , Gas Separator , Pump, Etc. |
Key Word: |
Oil Well Electric Submersible Pump |

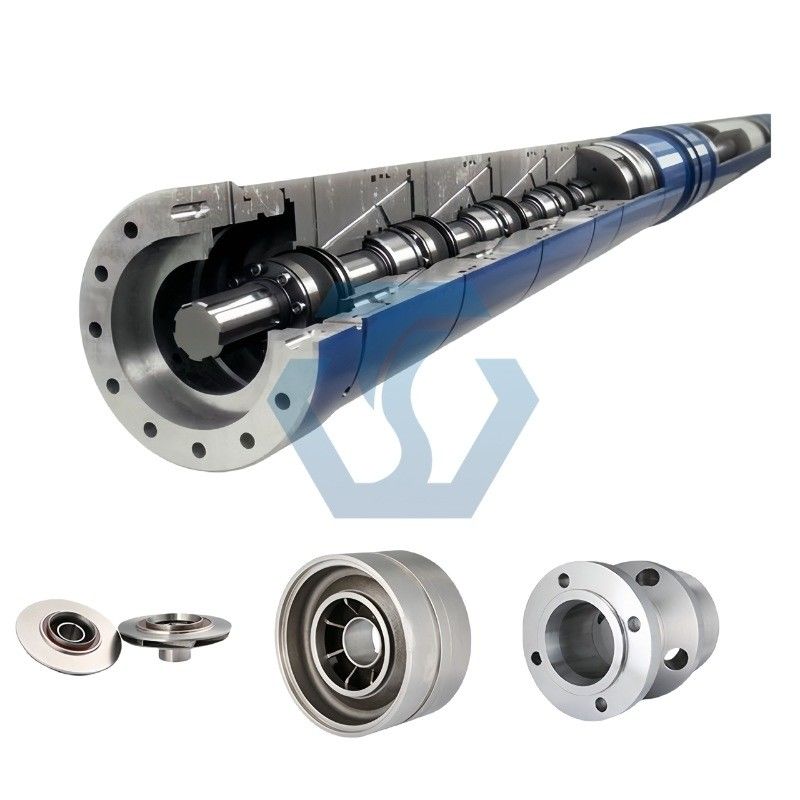

The full name of Electric Submersible Pump is electric submersible centrifugal pump, or electric pump for short. It is an underground lifting device that lowers the motor and pump into the oil well below the liquid level to pump oil. The electric submersible pump is a multi-stage centrifugal pump that works underground. It is lowered into the well together with the oil pipe. The ground power supply transmits electrical energy to the underground submersible motor through the transformer, control panel and submersible cable, so that the motor drives the multi-stage centrifugal pump to rotate, converts electrical energy into mechanical energy, and lifts the oil in the oil well to the ground.
Our company Huichi The other supporting products of the electric submersible pumps produced and sold by petro can be prepared or customized according to your needs. The related supporting products include: various water pipelines, various high, medium and low voltage switch cabinets, variable frequency starting control cabinets, auto-coupling pressure reducing starting cabinets, special control cabinets for water pumps with liquid level control, digital liquid level display, ordinary diving special cables, high temperature resistant diving special cables, nylon cable binding belts, special waterproof tapes (randomly equipped), and manhole covers (commonly known as pump seats), pallets for lifting and lowering into the well, high-strength screws, rubber gaskets, various throttle valves for regulating flow, pipeline check valves, etc. We can customize it for you according to your specific situation. We can provide customers with a full set of equipment with quality and quantity to meet their special needs. If you have any needs, please contact our sales engineers.
1. Large displacement range and high head; Suitable for sucking high viscosity fluid and solids-laden fluid;
2. This pump can inject water from the upper water layer of the oil well into the lower water injection layer;
3. It can be frequency-controlled according to the requirements of fluid production changes, and the pumping process is continuous and stable;
4. The ground equipment occupies a small area and space, and can be used for inclined wells and horizontal wells, and is suitable for offshore platforms;
5. Simple operation, convenient management, easy to deal with corrosion and wax deposition, and long service life;
6. It is easy to install downhole pressure sensors, and transmit pressure signals to the ground through cables, which is convenient for pressure detection;
7. The pump inspection cycle is long, and the oil well production is relatively high, which is beneficial to oil well production.
Oilfield Well Drilling , Energy , Mining.
| Type | Head | Capacity (m3/d) | The Biggest O.D. | |||
| (m) | 158 rpm | 285 rpm | 335 rpm | 356 rpm | (mm) | |
| 28-27 | 1000 | 6.4 | 11.5 | 13.5 | 14.4 | 89.5 |
| 28-40 | 1500 | 6.4 | 11.5 | 13.5 | 14.4 | 89.5 |
| 40-20 | 800 | 9.1 | 16.4 | 19.3 | 20.5 | 89.5 |
| 40-42 | 1600 | 9.1 | 16.4 | 19.3 | 20.5 | 89.5 |
| 65-35 | 1300 | 14.8 | 26.2 | 31.3 | 33.3 | 102 |
| 75-16 | 550 | 17.1 | 30.7 | 36.2 | 38.4 | 107 |
| 75-27 | 1000 | 17.1 | 30.7 | 36.2 | 38.4 | 89.5 |
| 75-40 | 1500 | 17.1 | 30.7 | 36.2 | 38.4 | 107 |
| 75-47 | 1800 | 17.1 | 30.8 | 36.2 | 38.5 | 108 |
| 80-33 | 1200 | 18.2 | 32.8 | 38.6 | 41 | 102 |
| 90-25 | 1000 | 20.5 | 37 | 43.5 | 46.2 | 108 |
| 100-55 | 1800 | 22.8 | 41 | 48.2 | 51.3 | 108 |
| 120-14 | 500 | 27.3 | 50 | 57.9 | 61.5 | 107 |
| 120-27 | 1000 | 27.3 | 50 | 57.9 | 61.5 | 107 |
| 120-36 | 1300 | 27.3 | 50 | 57.9 | 61.5 | 108 |
| 140-30 | 1200 | 31.9 | 57.5 | 67.5 | 71.8 | 114 |
| 190-33 | 1200 | 43.3 | 78 | 91.7 | 97.4 | 107 |
| 200-27 | 1000 | 45.8 | 82 | 96.5 | 103 | 114 |
Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.
100% tested before delivery.
Express, truck , train , air , sea , or customized according to customer requirements.
Shandong Huichi Petroleum Equipment Co.,Ltd. is a professional supplier of drilling equipment for the oil and gas industry.
Our Huichi products cover all aspects of drilling , operations , oil production , etc. We have rich experience in the production and export of oil drilling supporting equipment.
One-stop drilling equipment supply;
More than 10 years of experience in drilling equipment supply;
More than 10 people engaged in export business;
More than 40 partner countries and regions;
More than 200 customers having close cooperative relationships;
More than 250+ partner factories as suppliers.
