Protective Stabbing Guide For Pipe Connectors In Oil And Gas Industry

________________________________________

Product overview:

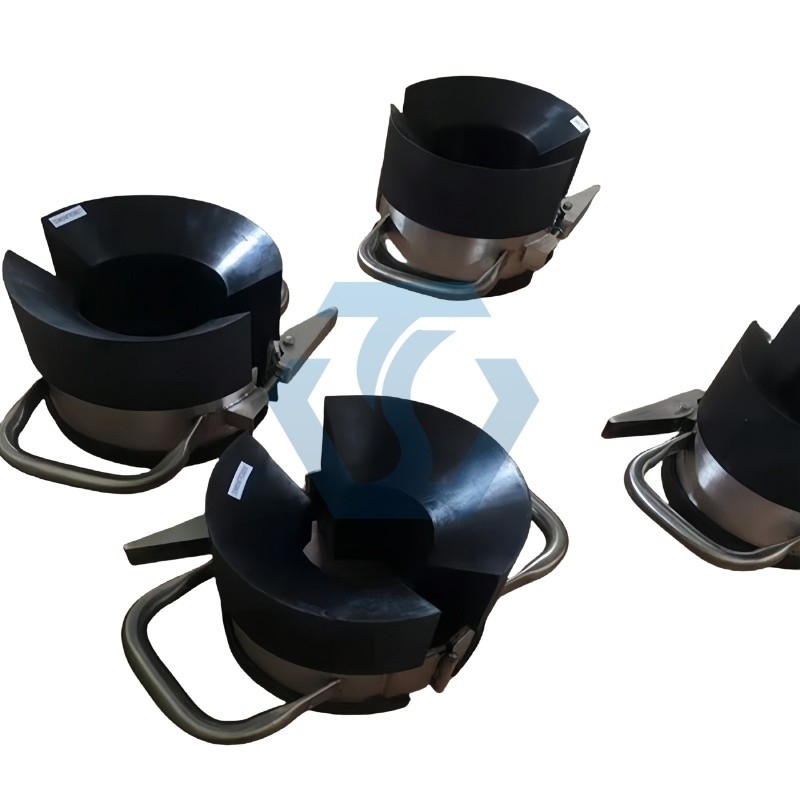

The Stabbing Guide is a core auxiliary tool used to accurately guide the threaded connection of drill pipe, casing or oil pipe in oilfield drilling operations. Through its guide groove and straightening structure, it ensures that the pipe thread is quickly and accurately connected to avoid wrong threading or thread damage, effectively solving the problems of difficulty, low efficiency and easy error in manual connection, making the connection process of pipes smoother. Its high-strength material and modular design can be adapted to drilling and well repair operations in deep wells on land, offshore platforms and complex formations, significantly improving the efficiency and safety of pipe connection.
________________________________________

Core functions:

1. Precise guidance: V-shaped or U-shaped guide groove design, suitable for 2-3/8" to 20" pipe diameters, error range ≤1mm, avoiding the risk of wrong threading.
2. Efficient and convenient operation: The equipment is simple and convenient to operate. The operator only needs to put the pipe into the specified position of the Stabbing Guide, and the equipment can automatically complete the guidance of the connection.
3. Impact resistance protection: alloy steel body + inner lining polyurethane buffer layer, resist pipe string collision impact, reduce tool deformation and wear.
4. Multi-scenario adaptation: supports pipe string docking of vertical wells, horizontal wells and high-angle wells, compatible with API standards and special buckle types (such as VAM, FOX). It can be flexibly adjusted according to pipes of different specifications and models to adapt to drill pipes and casings of various sizes.

________________________________________

Technical parameters:

    • Material:

      o Main body: high-quality alloy steel (4145H/4140), quenched and tempered hardness HRC30-35.
      o Guide groove lining: wear-resistant polyurethane or nylon composite material, Shore hardness ≥90A.

    • Specification range:

      o Applicable pipe diameter: 2-3/8" to 20" (API standard and non-standard customization).
      o Guidance accuracy: horizontal deviation ≤1mm, angle deviation ≤0.5°.

    • Thread type support:

      API standard round thread (Round Thread), buttress thread (Buttress Thread).

    • Inspection and certification:

      100% dimensional accuracy inspection + dynamic load test, in line with API RP 7G, ISO 14693 specifications.


________________________________________

Applicable scenarios:

Stabbing Guide is widely used in land and offshore drilling operations, especially in occasions where frequent docking of tubular tools such as drill pipes and drill collars is required, its precise, efficient and convenient characteristics are fully demonstrated.

• Quick wellhead connection of drill pipe, casing or tubing
• Precise docking of pipe strings for horizontal wells and extended reach wells
• Supporting application of offshore platform automated drilling system
• Well repair and completion operations in sulfur-containing formations and high-pressure wells

________________________________________

Product advantages:

1. Reduce labor intensity: Replace some manual operations, operators no longer need to spend a lot of time and energy on tedious docking work, greatly reducing labor intensity and improving work comfort and safety.
2. Improve operation quality: Precise thread guide effectively reduces thread damage and connection failure, and improves the quality and stability of pipe connection.
3. Strong and durable material: Made of high-strength, corrosion-resistant high-quality steel, it has excellent strength and wear resistance after strict quality inspection and process treatment.
4. Full working condition coverage: Supports anti-sulfur materials, low-temperature anti-brittleness and non-standard pipe diameter customization, adapting to extreme environments from -40℃ to 120℃. 5. Improve operation safety: Through precise guidance function, the risk of safety accidents caused by improper operation during manual threading is reduced. Avoid accidents such as collision and slipping of pipes during docking.

________________________________________

After-sales service:

• Global 48-hour emergency response, providing on-site installation guidance and spare parts replacement services.
• Free replacement due to material or process problems during the warranty period, and provide third-party inspection reports.
• Free pipe docking operation training and guide accuracy calibration tools.

________________________________________

Contact us:

Get the technical manual and customized solution of the buckle guide immediately to achieve accurate and efficient pipe connection for your drilling operation!
