Product Details
Place of Origin: China
Brand Name: HuiChi (HC)
Certification: API
Model Number: SSW Series
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: $ 8000 ~ 9000 / Set
Packaging Details: Export Wooden Case And Wooden Palle Or According To Customers' Requirements.
Delivery Time: Within 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 Sets Per Month
Condition: |
New |
Warranty Of Core Components: |
6 Months |
Customized: |
Logo / Packaging / Graphic |
Machinery Test Report: |
Provided |
Working Pressure: |
75 ~ 130 Psi |
Applicable Range: |
3.1/2 To 10 In O.D For Drill Pipes And Collars |
Spinning Speed (rpm): |
0-120 |
Material: |
Alloy Steel |
Condition: |
New |
Warranty Of Core Components: |
6 Months |
Customized: |
Logo / Packaging / Graphic |
Machinery Test Report: |
Provided |
Working Pressure: |
75 ~ 130 Psi |
Applicable Range: |
3.1/2 To 10 In O.D For Drill Pipes And Collars |
Spinning Speed (rpm): |
0-120 |
Material: |
Alloy Steel |
________________________________________

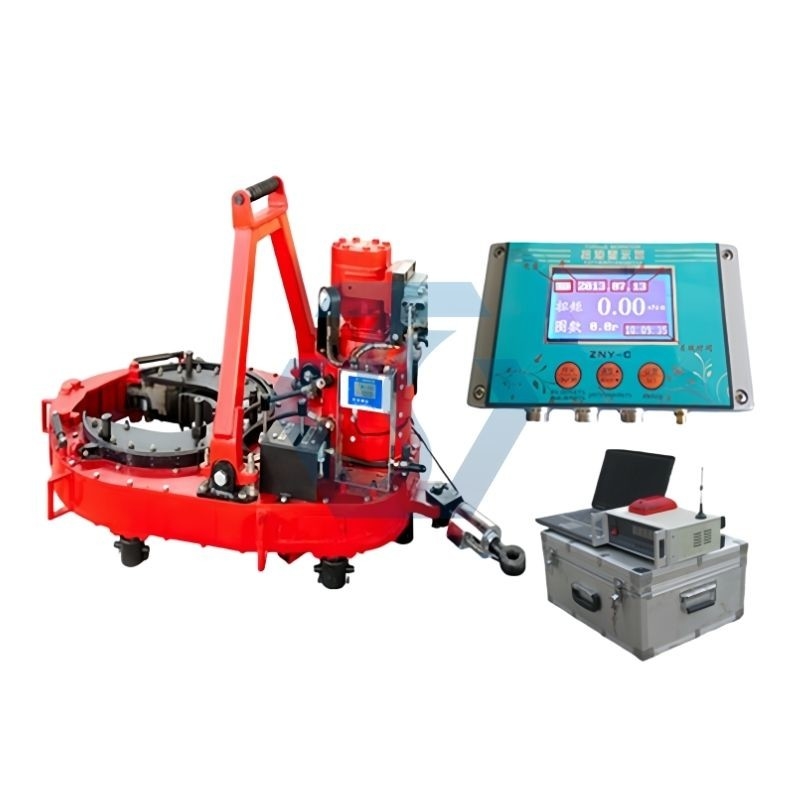

The Spinning Wrenches produced and sold by our company Huichi petro are efficient and accurate auxiliary tools for efficient connection and removal of drill pipes, casings and other pipes in oilfield drilling operations. It is mainly used to quickly and safely complete the screw connection and removal of downhole tools such as drill pipes and casings. The equipment is suitable for drilling platforms on land, sea and in complex environments (such as high temperature, low temperature, and high humidity) to meet diverse drilling needs.
________________________________________
The working principle of the Spinning Wrenches produced and sold by our company Huichi petro is based on efficient power transmission and precise torque control. The equipment converts hydraulic energy into mechanical kinetic energy by connecting to the power source of the drilling rig (usually a hydraulic system) to drive the wrench body to rotate rapidly. When performing drill pipe connection or removal operations, the operator accurately puts the Spinning Wrenches on the drill pipe joint. After starting the equipment, the wrench will work according to the set torque value and rotation direction. The advanced torque control system can monitor and adjust the torque output in real time to ensure the tightness and stability of the drill pipe connection and prevent safety hazards and quality problems caused by excessive or insufficient torque. When the preset torque value is reached, the device will automatically stop working and prompt the operator to complete the operation.
________________________________________
o Spinning wrenches integration: integrated with spinning wrenches and punching functions, supports continuous twisting and high torque punching/opening operations, suitable for wellhead and mouse hole scenarios, and improves operation efficiency by more than 40%.
o Intelligent torque management: The device has a built-in high-precision torque sensor, which can monitor and adjust the torque output in real time, with an error range of ≤±5%, to prevent damage to pipes caused by overload or insufficient torque.
o Efficient and fast: Spinning wrenches have extremely high rotation speed and strong torque output capacity, and can complete the connection or removal of drill pipes in a short time.
o Safe and reliable: equipped with multiple safety protection mechanisms, such as overload protection, anti-slip design, etc., to ensure safety during operation.
o Explosion-proof and anti-corrosion design: Meets IP65 protection level and EXd BT4 explosion-proof standard. Marine models use highly anti-corrosion materials and are suitable for salt spray and humid environments.
o Multiple models covered: Including YCZ series (such as YCZ380LXS), RP type disassembly and assembly frame, etc., suitable for land drilling rigs, workover rigs and offshore platforms.
o Easy operation: Humanized design makes operation easier, reduces the physical burden of operators, and improves working comfort.
o Strong adaptability: Spinning Wrenches can adapt to drill pipes of different specifications and types. Whether it is common API standard drill pipes or special specifications of drill pipes, the operation can be easily completed by replacing the corresponding accessories.
________________________________________
| Working Pressure | 0.5~0.9 MPa |
| Rotation Speed Of Air Motor | 2800 r/min |
| Gas Consumption | 15 m3/min |
| Applicable Pipe Diameter |
Normally, 3 1/2~10(in) drill pipe or drill collar(Φ89~Φ254mm) |
| Roller Spinning Rotation Speed | 0~120 r/min |
| Maximum Brake Torque | 2500 N.m (10in drill pipe) |
________________________________________
Spinning Wrenches are widely used in various oilfield drilling operations, including land drilling, marine drilling, deep well drilling, horizontal well drilling, etc. In the assembly and disassembly of drill pipes, Spinning Wrenches can give full play to their advantages of high efficiency and precision, quickly complete work tasks, and provide strong support for the smooth progress of drilling operations.
________________________________________
Our company Huichi petro has a professional after-sales service team that can provide customers with comprehensive and timely after-sales service support. Whether it is equipment installation and commissioning, operation training, or equipment maintenance and troubleshooting, the after-sales service team can respond to customer needs at the first time to ensure that the customer's equipment can operate normally and minimize the customer's use costs and risks.
________________________________________
________________________________________
Product packaging: iron box or iron frame, wooden pallet, wooden box, bulk or customized according to customer requirements.
________________________________________
100% inspection will be carried out before shipment, and video image data and inspection reports will be provided.
________________________________________
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
________________________________________
Shandong Huichi Industry & Trade is a professional supplier of drilling equipment for the oil and gas industry. We are committed to providing the best products and services to customers around the world.
We HuiChi (HC) Petro always regard our customers as our partners and aim to achieve long-term cooperation value. Our Huichi products cover different fields such as oil fields, water wells, HDD, etc.
________________________________________
One-stop drilling equipment supply;
Employee engineers have more than 10 years of experience in supplying drilling equipment;
More than 10 people engaged in export business;
More than 40 partner countries and regions;
More than 200 customers having close cooperative relationships;
More than 250+ partner factories as suppliers.
