Product Details
Place of Origin: China
Brand Name: HuiChi (HC)
Certification: API
Model Number: Mud Pump Liner Series
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: $ 40~50 / Set
Packaging Details: Export Wooden Case And Wooden Palle Or According To Customers' Requirements.
Delivery Time: Within 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Sets Per Month
Condition: |
New |
Warranty Of Core Components: |
1 Year |
Customized: |
Logo / Packaging / Graphic |
Machinery Test Report: |
Provided |
Pressure: |
High Pressure |
Application: |
Drilling Mud Pump Spare Parts |
Material: |
Ceramic, Bi-metal |
Mud Pump Models: |
F Series, NB Series, P Series, T Series, All Models |
Size: |
3-1/2" ~ 7-1/2" |
Type: |
Triplex Single-Acting |
Condition: |
New |
Warranty Of Core Components: |
1 Year |
Customized: |
Logo / Packaging / Graphic |
Machinery Test Report: |
Provided |
Pressure: |
High Pressure |
Application: |
Drilling Mud Pump Spare Parts |
Material: |
Ceramic, Bi-metal |
Mud Pump Models: |
F Series, NB Series, P Series, T Series, All Models |
Size: |
3-1/2" ~ 7-1/2" |
Type: |
Triplex Single-Acting |
The common mud pump cylinder liners produced and sold by our company Huichi petro are of the following types: single metal cylinder liners, bimetallic cylinder liners, ceramic cylinder liners, and nickel-based alloy cylinder liners. All products are designed and produced in strict accordance with the API standards of the American Petroleum Institute and are completely interchangeable with original accessories. The specifications can be matched with various commonly used models of ceramic cylinder liners.
Single Metal Cylinder Liner
After carburizing and high-frequency treatment, the hardness of a single metal cylinder liner can reach HRC58-62. It has the characteristics of high cleanliness, wear resistance, corrosion resistance, and long service life. Suitable for mildly corrosive mud.
Bimetallic Cylinder Liner
Bimetallic cylinder liner is one of the commonly used hydraulic end fittings for mud pumps. Bimetallic cylinder liner combines the advantages of hot forged high wear-resistant coating and high chromium wear-resistant and corrosion-resistant inner sleeve. The outer sleeve is hot-pressed with high-quality carbon steel, and the inner sleeve is centrifugally cast with high chromium cast iron. The inner surface of the mud is as smooth as a mirror, the inner hole size tolerance is strict, and the normal service life can reach more than 800 hours.

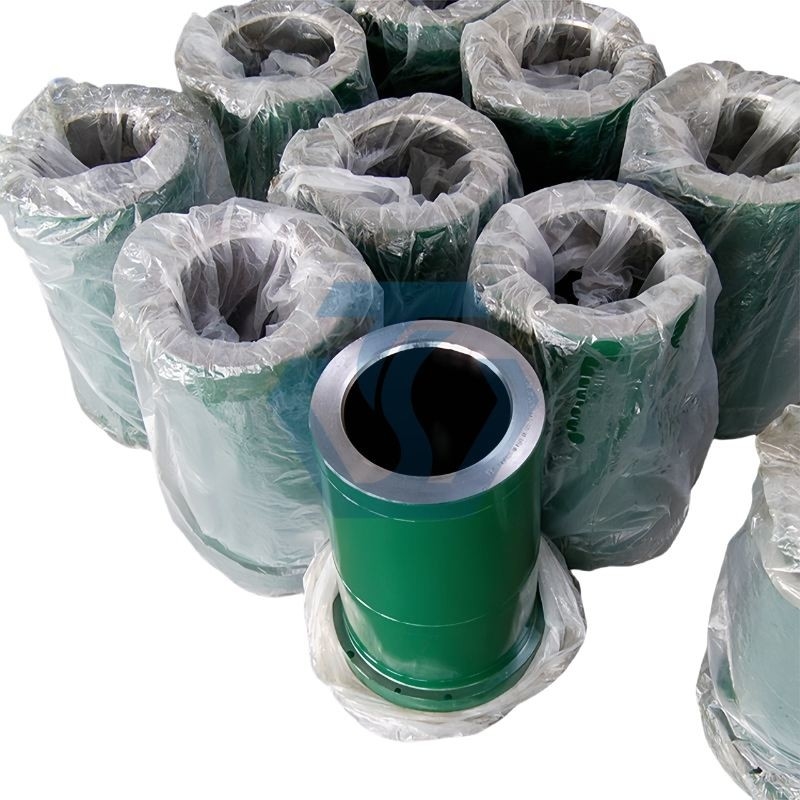

Ceramic cylinder liner
The raw materials of ceramic cylinder liner are high-purity nano zirconium oxide and aluminum oxide powder, which are formed by advanced cold pressing process, sintered at high temperature, assembled and polished with high precision. The overall mechanical properties are superior, with high bending strength, tensile strength, fracture toughness and acid and alkali corrosion resistance. The labor cost and maintenance cost are greatly reduced, and the service life is longer than that of bimetallic cylinder liner, and the comprehensive cost is lower.
Nickel-based alloy cylinder liner
The alloy material is covered on the inner wall of the cylinder liner by vacuum sintering technology to form an alloy sintered layer. Micron-level high wear-resistant hard particles are evenly distributed in the sintered layer, which effectively improves the overall wear resistance of the sintered layer.
Nickel-based alloy cylinder liner has the characteristics of wear resistance, high temperature resistance, high strength, high hardness, and not easy to break. The price is much lower than that of ceramic cylinder liner, which can significantly improve the drilling progress and reduce the costs of drilling transportation, maintenance, labor, storage, etc.
All Huichi Petro liner products are interchangeable with O.E.M. products. Meanwhile, we provide customized Liners according to drawings. Our liners, also with our other mud pump spares, are supplied for use in Honghua, F-Series, Bomco, Emsco and National lines of triplex drilling pumps. Huichi Petro provides high quality Mud Pump Parts including Mud Pump Liners, Mud Pump Fluid End Module, piston, Valve and Seat etc. All Huichi Petro liner products are interchangeable with O.E.M. products. Meanwhile, we provide customized Liners according to drawings. With more than 10 years of experience in the oil and gas industry, we are dedicated to help and support our loyal clients with the most cost-effective and quality Liners and Pistons. We also provide mud pump price and mud pump for sale. Huichi Petro offers high quality mud pump accessories including mud pump liners, mud pump fluid end modules, pistons, valves and valve seats, etc. All Huichi Petro liner products are interchangeable with OEM products. At the same time, we provide customized liners according to drawings.
We have more than 10 years of experience in the oil and gas industry, and we are committed to helping and supporting our loyal customers with the most cost-effective and quality liners and pistons. We also provide mud pump prices and mud pump sales.
1. The product service life meets the requirements of API standards;
2. 100% interchangeable with the most common brands of mud pumps;
3. Long lasting service life up to 4000 hours;
4. Also provide reliable Liner packing Seal Rings;
5. Support customization, special design and customization can be made according to customer specific requirements.
Oilfield Well Drilling , Energy , Mining.
| Mud Pump Liner | |||||
| Types Of Mud Pump Liner & Photos | Bi-metal | Hardened Steel | Chrome Plated | Ceramic | |
| Description | Hy-chrome Inner Sleeve And Forged Steel Outer Hull | Hardened Steel | Core plated by Chrome | Ceramic Zirconia | |
| Material | AISI 1045 / ASTM A532M | AISI 1045 | AISI 1045 Chrome-plated bore | AISI 1045 Zirconia-based Ceramic | |
| Hardness | HRC 60~69 | HRC 58~62 | HRC 58~62 | HRC 92~94 | |
| Normal Service Life (Hr) | 800 | 800 | 800 | 2000~4000 | |
| Operating Condition | Pressure (Max. in psi) | 7500 | 7500 | 7500 | 7500 |
| Temperature | 20~240℉ | 20~230℉ | 20~240℉ | 20~350℉ | |
| pH (Normal) | 7.5~10.2 | 7.5~10.2 | 7.5~10.2 | 7.5~10.2 | |
| Hydrogen Sulfide (Max. in ppm) | 22 | 22 | 22 | 24 | |
| Sand Solids (Normal) | 0.21% Oil Based And Oil Emulsion | 0.21% Oil Based And Oil Emulsion | 0.21% Oil Based And Oil Emulsion | 0.21% Oil Based And Oil Emulsion | |
Product Package:
Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.
100% tested before delivery.
Express, truck , train , air , sea , or customized according to customer requirements.
