Product Details
Place of Origin: China
Brand Name: HuiChi (HC)
Certification: API 16A
Model Number: FPG Series
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: $ 200 - 3000 / Set
Packaging Details: Export Wooden Case And Wooden Palle Or According To Customers' Requirements.
Delivery Time: Within 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Sets Per Month
Condition: |
New |
Warranty Of Core Components: |
1 Year |
Customized: |
Logo / Packaging / Graphic |
Machinery Test Report: |
Provided |
Size: |
2 1/2"- 6 3/8" |
Working Pressure: |
3000~15000psi |
Length: |
2 Ft ~ 20 Ft |
Work Temperature: |
-29℃~121℃ |
Material: |
Alloy Steel |
Condition: |
New |
Warranty Of Core Components: |
1 Year |
Customized: |
Logo / Packaging / Graphic |
Machinery Test Report: |
Provided |
Size: |
2 1/2"- 6 3/8" |
Working Pressure: |
3000~15000psi |
Length: |
2 Ft ~ 20 Ft |
Work Temperature: |
-29℃~121℃ |
Material: |
Alloy Steel |

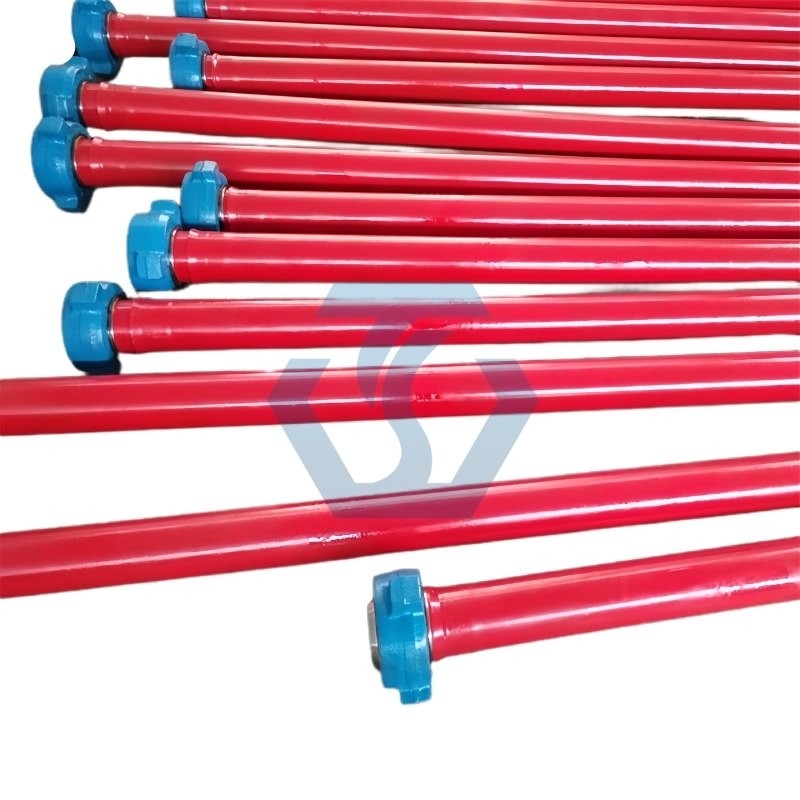

The Lubricator Riser is installed above the pressure relief nipple. The connection length and number of the blowout preventer can be determined according to needs. The connection between the Lubricator Risers is connected by a threaded union. The Lubricator Risers are made of seamless steel pipes. The length is generally made into 2-2.5 meters according to needs. In addition, 0.5-meter and 1-meter nipples are equipped for lengthening adjustment. The Lubricator Riser of this device is a trapezoidal threaded union connection type, which can be connected without the help of special tools. Its structure adopts a hook-shaped handle for connection and disassembly, which is easy to operate and has good sealing performance. The sealing form is an O-shaped radial seal. A new rubber seal ring should be replaced every time the Lubricator Riser is used.
The length of the Lubricator Riser produced and sold by our company Huichi petro can be manufactured according to the specific requirements of customers.
Lightweight Lubricators usually consists of four basic parts: a quick union collar, a male quick union, a lubricator tube, and a female quick union.
1. Length of the lubricator riser could be customized according to working condition;
2. Drilling fluid, frac acidizing fluid, oil, gas and water can be working media;
3. Connection end of the lubricator riser could be flanged or union;
4. Our lubricator riser is designed and manufactured according to API 16A.
Oilfield Well Drilling , Energy , Mining.
| Model | Working Pressure (Psi) | ID (mm) | Cable Size | Connection | Service Environment | Working Temperature |
| FPG6-35 | 5000 | 62(65) |
Ф1.8---Ф3.2 |
4 1/4''-6SA |
Crude oil,water,Nature gas with H2S and CO2 |
T-20(-29℃---+121℃)(high temperature to 350℃ thermal recover type optional) |
| FPG7-35 | 5000 | 76(78) | 5 '-4 ACME | |||
| FPG10-35 | 5000 | 103 | 7 3/4''-5 ACME | |||
| FPG7-70 | 10000 | 76(78) | 5 3/4''-4ACME | |||
| FPG10-70 | 10000 | 103 | 8 3/8''-4ACME | |||
| FPG7-105 | 15000 | 76(78) | 7 3/4''-4ACME | |||
| FPG10-105 | 15000 | 103 | 9 1/2''-4ACME | |||
| FPG6-70T | 10000 | 103 | 8 3/8''-4ACME | |||
| FPG7-70T | 10000 | 76(78) | 5 3/4''-4ACME | |||
| FPG10-70T | 10000 | 103 | 8 3/8''-4ACME |
Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.
100% tested before delivery.
Express, truck , train , air , sea , or customized according to customer requirements.
