API 16A Annular BOP Packing Element Rubber Spare Parts For Oilfield Drilling

Product Description:

    In the process of oil and gas exploration and development, in order to achieve the purpose of safe drilling, well control equipment is often installed at the wellhead. The wellhead pressure is controlled by the well control equipment to ensure the safety of the operators. Commonly used well control equipment includes blowout prevention devices, such as blowout preventers. Blowout preventers are widely used as a secondary well control equipment.

    They can be used to fully seal the wellhead, shear the drill bit, seal the annulus, force the drill bit, suspend the drill bit, and manually shut in the well. During the operation, the blowout preventer can be equipped with a gate to close the empty well, a gate to cut the drill pipe, and a gate group with a variable diameter within a certain range. The gate blowout preventer generally includes: a shell, a side door, a cylinder, a cylinder head, a gate assembly, a piston rod, a piston and a locking shaft. According to the number of gate chambers provided in the shell of the gate blowout preventer, the gate blowout preventer is divided into a single gate blowout preventer, a double gate blowout preventer and a triple gate blowout preventer.

    The single gate blowout preventer has only one gate chamber in its shell, and a pair of gates is installed in the gate chamber. The double gate blowout preventer has two gate chambers in its shell, and two pairs of gates are installed. The triple gate blowout preventer has three gate chambers in its shell, and three pairs of gates are installed. Among them, the gate assembly in the gate blowout preventer is the core component of the gate blowout preventer. The gate assembly consists of a gate and a rubber core. The rubber core is set on the gate and mainly plays a sealing role.

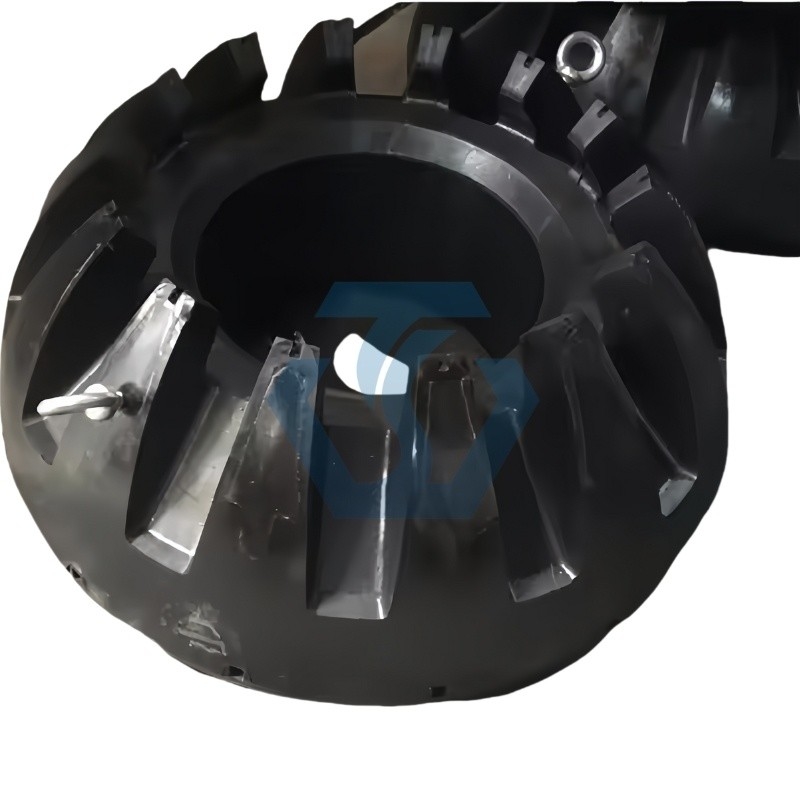

    The packing element for Annular BOP has special type and taper type. The packing element is combined by the main body which is made up of the independent innovation rubber based polymer alloy material and the high strength metal frame, which conforms to the USA 16A, SATM D412, D624, D2240 and D471 standard. It is suitable for the drilling work on the oil field, which shares a high cost performance comparing to the other same type packing elements.

    Other BOP parts that we supply all come from original/OEM manufacturers, they are 100% interchangeable.

    Brand: Chinese brand and America big brand

    The packing elements for annular BOP produced and sold by our company Huichi petro have special type and taper type. The packing element is composed of a main body composed of an independently innovated rubber-based polymer alloy material combined with a high-strength metal frame, which complies with the US 16A, SATM D412, D624, D2240 and D471 standards. It is suitable for oilfield drilling operations and has a higher cost-effectiveness compared to other similar packings.

Product Features:

  1. In accordance with API Spec.16A;

  2. All the parts are original or interchangeable;

  3. Reasonable structure, easy operation, long life of plastic core;

  4. Adapt to a wide range, capable to seal pipe string with nominal paths from 0-DN in and shapes, better performance by combining with ran blowout preventer in the use;

  5. The other blowout preventer parts we provide are all from original/OEM manufacturers, and they are 100% interchangeable.

Product Display:

Product Application:

    Oilfield Well Drilling , Energy , Mining.

Product Model Parameters:

    Brand: Chinese brands and major American brands

    Type: Annular BOP, Single Ram BOP, Double Ram BOP, Shear Ram BOP

    Working pressure: 2000psi-15000psi (14 Mpa~105 Mpa)

    Operating temperature: -18℃~121℃

    Bore size: 7 1/16″~21 1/4″

    Top & bottom connection: Flanged, studded

Product Package:

    Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.

Product Detection:

    100% tested before delivery.

Product Delivery Method:

    Express, truck , train , air , sea , or customized according to customer requirements.
