Product Details
Place of Origin: China
Brand Name: HuiChi (HC)
Certification: API
Model Number: LL Series
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: $ 200 ~ 1000 / Set
Packaging Details: Export Wooden Case And Wooden Palle Or According To Customers' Requirements.
Delivery Time: Within 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 Sets Per Month
Condition: |
New |
Warranty Of Core Components: |
6 Months |
Customized: |
Logo / Packaging / Graphic |
Machinery Test Report: |
Provided |
Size: |
89 ~ 381mm |
Thread Connection: |
NC / REG |
Catch Size (in): |
1-9/16"~8-3/16" |
Product Name: |
Junk Basket |
Condition: |
New |
Warranty Of Core Components: |
6 Months |
Customized: |
Logo / Packaging / Graphic |
Machinery Test Report: |
Provided |
Size: |
89 ~ 381mm |
Thread Connection: |
NC / REG |
Catch Size (in): |
1-9/16"~8-3/16" |
Product Name: |
Junk Basket |

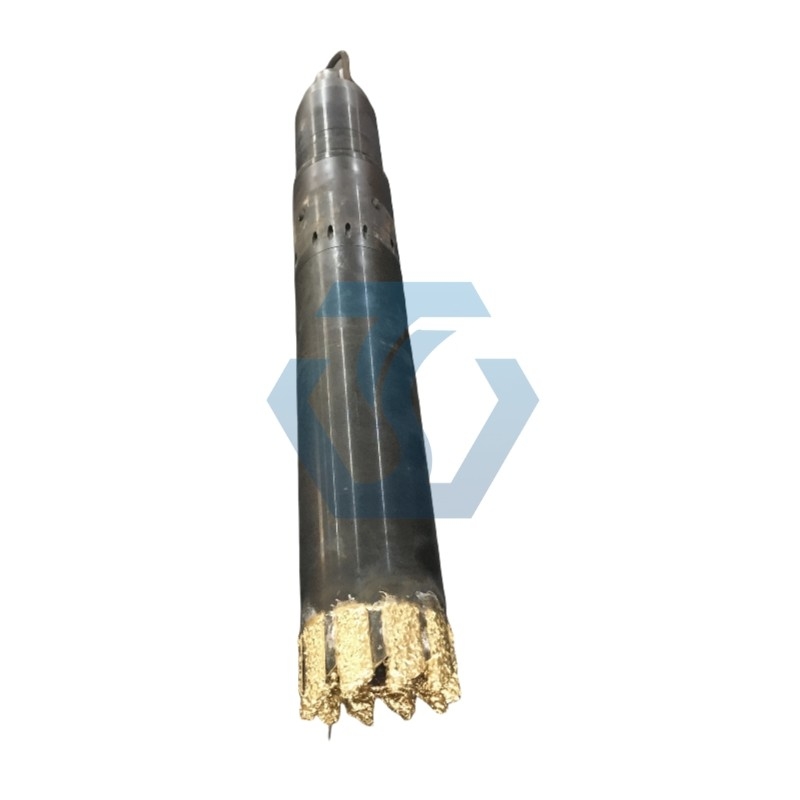

The junk basket sold by our company is a tool that uses the principle of reverse circulation of liquid flow to fish out debris from underground. During the drilling process, high-flow, high-pressure drilling fluid will flush the bottom of the well through the drill pipe, forming a local reverse circulation at the bottom of the well, and then flowing back to the ground through the well wall. The drilling junk basket uses this reverse circulation principle to collect various loose debris or metal fragments from the bottom of the well, such as drill bit cones, bearings, slips and hand tools, into the basket and fix them by the debris catcher of the tool, so as to clean the bottom of the well and achieve the purpose of salvage.
There are two types of reverse circulation junk baskets produced and sold by our company Huichi Petro: ITCO junk basket and reserve circulation junk basket.
The tool consists of a top sub, barrel assembly, catcher, and shoe. The barrel assembly consists of an inner and outer barrel, valve seat, cup, and ball. A lift sub is also provided to assist in handling.
The use of drilling junk baskets requires certain professional knowledge and skills. It is recommended to consult professionals or refer to relevant operating manuals before use. Generally speaking, the steps for using drilling junk baskets are as follows:
1. Install the drilling junk basket on the drill pipe and ensure that the basket is at the bottom of the well.
2. Start injecting drilling fluid and let it flow into the bottom of the well.
3. When the drilling fluid flows through the bottom of the well, the reverse circulation device in the basket will pick up the debris at the bottom of the well into the basket.
4. When the amount of debris in the basket reaches a certain amount, stop injecting drilling fluid, slowly raise the drill pipe, and bring the basket out of the wellhead.
5. Turn the basket upside down and pour out the collected debris.
When using the drilling salvage basket, pay attention to the following matters:
1. Before use, the drilling salvage basket should be inspected to ensure that it is intact.
2. During use, pay attention to the flow and pressure of the drilling fluid to avoid being too large or too small.
3. During use, pay attention to the position of the basket to avoid the debris being missed or the basket being stuck.
4. During use, pay attention to safety to avoid accidents.
1. Alternate Mill Shoes available are Type B and Type C;
2. Good raw materials are selected, the materials are exquisite, the raw materials are selected, can withstand high pressure, and are sturdy;
3. A lifting sub is provided for ease of handling which includes a storage space for the steel ball used in the operation of the tool;
4. Reliable performance, retractable slip overshot tube, simple operation;
5. A single junk catcher is used in each assembly;
6. Itco Junk Basket may be easily converted to a fishing magnet by replacing the catchers with magnet insert;
7. Various specifications, customizable, equipped with extended short sections, wall hooks, enlarged guide shoes and other accessories according to different uses.
Oilfield Well Drilling , Energy , Mining.
| Technical Specification | |||||
| Type | Max O.D. (mm) | StocI Ball O.D.(mm) | Connection | Hole Size Range | Total Length(mm) |
| LL 130 | 130 | 32 | NC38 | 5-5/8"~6" | 1050 |
| LL 146 | 151 | 35 | N050 | 6-1/8"~6-1/2" | 1376 |
| LL 196 | 205 | 43 | NC50 | 8-3/8"~9-1/2" | 1766 |
| LL 280 | 286 | 48 | 6-5/8 REG | 11-3/4"~12-1/4" | 1766 |
| LL 381 | 381 | 60 | 7-5/8 REG | 16"~17-1/2" | 1780 |
Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.
100% tested before delivery.
Express, truck , train , air , sea , or customized according to customer requirements.
